Product Summary

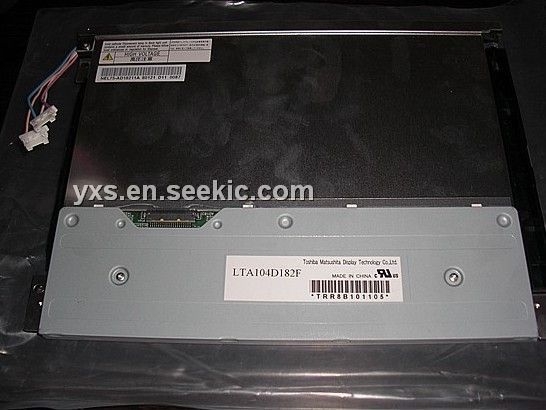

The LTA104D182F is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. The LTA104D182F is composed of a TFT LCD panel, a driver circuit and a back-light system. The resolution of a 10.4" contains 800 x 600 pixels and can display up to 262,144colors. 6 o’clock direction is the optimum viewing angle. The applications of the LTA104D182F include Display terminals for AV application products, Notebook PC, LCD PC and Web Pad, If the usage of this product is not for PC application, but for others, please contact SEC.

Parametrics

LTA104D182F absolute maximum ratings: (1)Storage temperature: -20 to 60℃; (2)Operating temperature, TOPR: 0 to 50℃; (3)Shock ( non-operating ), Snop: 50G; (4)Vibration (non-operating), Vnop: 1.0G.

Features

LTA104D182F features: (1)Thin and light weight; (2)High speed response time; (3)High contrast ratio, High brightness; (4)SVGA (800 x 600 pixels) resolution; (5)Low power consumption; (6)LVDS Interface with 1 pixel / clock (1 channel).

Diagrams

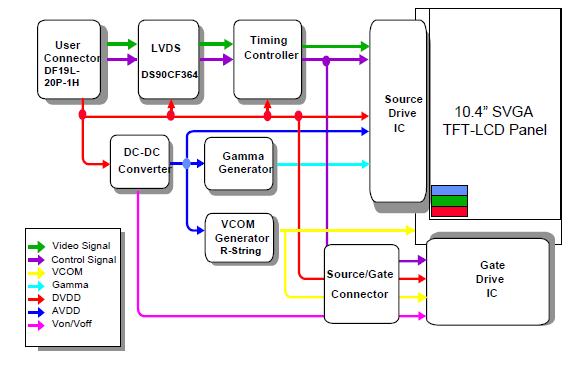

LTA104D182F block diagram
