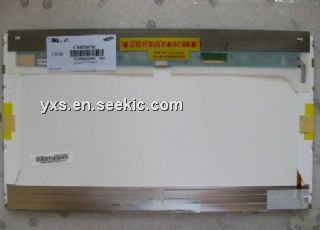

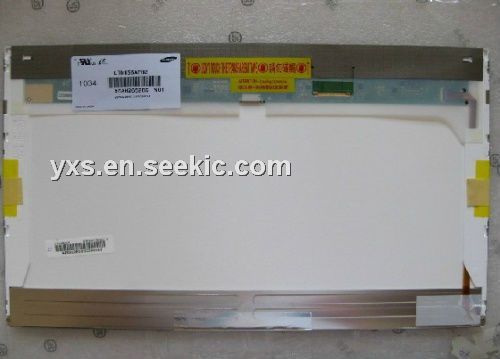

Product Summary

The LTN156AT02 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. The LTN156AT02 is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.6" contains 1366 x 768 pixels and can display up to 262,144 colors. The application of the LTN156AT02 is Notebook PC.

Parametrics

LTN156AT02 absolute maximum ratings: (1)Storage temperate: -20 to 60 ℃; (2)Operating temperate (Temperature of glass surface): 0 to 50 ℃; (3)Shock ( non-operating ): 240 G; (4)Vibration (non-operating): 2.41 G.

Features

LTN156AT02 features: (1)Thin and light weight; (2)High contrast ratio, high aperture structure; (3)HD (1366x768 pixels) resolution; (4)Fast Response Time; (5)Low power consumption; (6)Single CCFL; (7)DE (Data enable) only mode; (8)3.3V LVDS Interface; (9)On board EEDID chip; (10)Pb-free product.

Diagrams

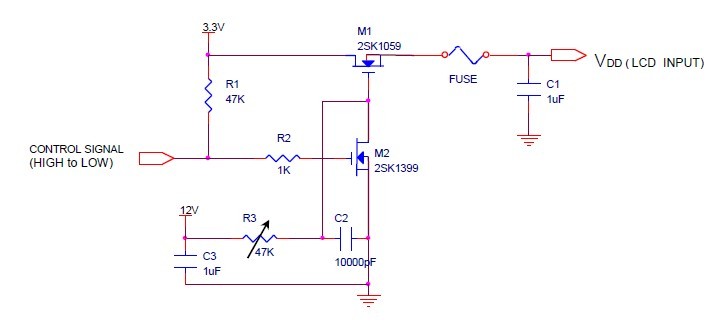

LTN156AT02 block diagram
