Product Summary

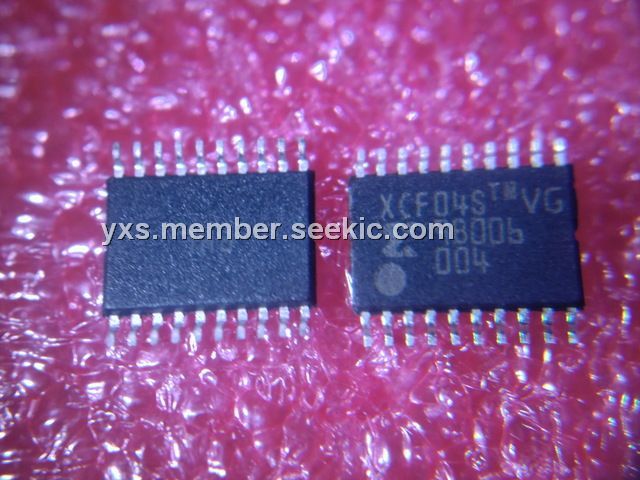

The XCF04SV020C is a Platform Flash In-System Programmable Configuration PROM. Available in 1 to 32 Megabit (Mbit) densities, the XCF04SV020C provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.
Parametrics
XCF04SV020C absolute maximum ratings: (1)Internal supply voltage relative to GND: –0.5 to +4.0 V; (2)I/O supply voltage relative to GND: –0.5 to +4.0 V; (3)JTAG I/O supply voltage relative to GND: –0.5 to +4.0 V; (4)VIN Input voltage with respect to GND: VCCO < 2.5V: –0.5 to +3.6 V, VCCO ≥ 2.5V: –0.5 to +5.5 V; (5)Voltage applied to High-Z output: VCCO < 2.5V: –0.5 to +3.6 V, VCCO ≥ 2.5V: –0.5 to +5.5 V; (6)Storage temperature (ambient): –65 to +150 ℃; (7)TJ Junction temperature: +125 ℃.
Features
XCF04SV020C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range (-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams.

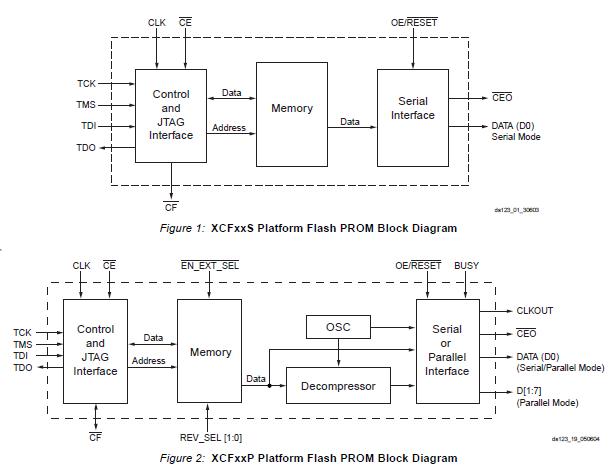

Diagrams
 |
