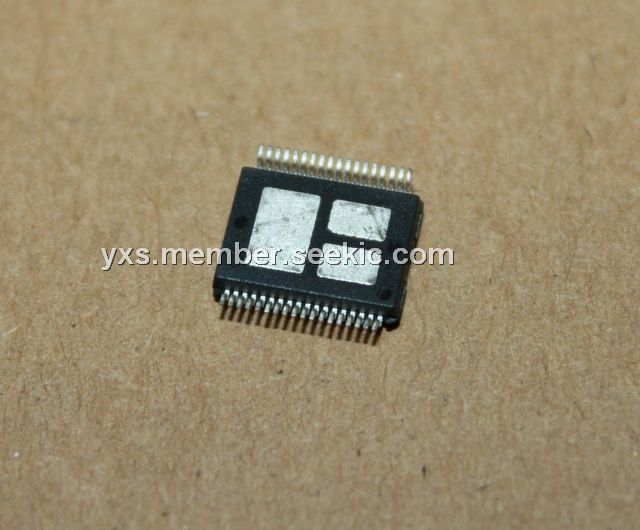

Product Summary
The VNH5180A is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. The VNH5180A is designed using STMicroelectronics well known and proven proprietary VIPower M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry.
Parametrics
VNH5180A absolute maximum ratings: (1)VCC Supply voltage: + 41 V; (2)IR Reverse output current (continuous): -15 A; (3)IIN Input current (INA and INB pins): +/- 10 mA; (4)IEN Enable input current (DIAGA/ENA and DIAGB/ENB pins): +/- 10 mA; (5)Ipw PWM Input current: +/- 10 mA; (6)ICS_DIS CS_DIS input current: +/- 10 mA; (7)VCS Current sense maximum voltage: VCC-41/+VCC V; (8)VESD Electrostatic discharge (Human body model: R=1.5 kΩ, C=100 pF): 2kV; (9)Tc Junction operating temperature: -40 to 150℃; (10)TSTG Storage temperature: -55 to 150℃; (11)I DC reverse ground pin current: 200 mA.
Features
VNH5180A features: (1)Output current: 8 A; (2)3 V CMOS compatible inputs; (3)Undervoltage shutdown; (4)Overvoltage clamp; (5)Thermal shutdown; (6)Cross-conduction protection; (7)Current and power limitation; (8)Very low standby power consumption; (9)PWM operation up to 20 KHz; (10)Protection against loss of ground and loss of VCC; (11)Current sense output proportional to motor current; (12)Output protected against short to ground and short to VCC; (13)Package: ECOPACK.

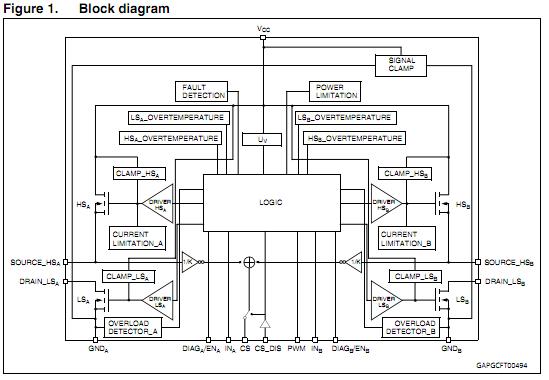

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VNH5180A-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Automotive H-Bridge 180mOhm 8A 41V VCC |
Data Sheet |
|
|
||||||||||||
|
VNH5180ATR-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Automotive H-Bridge 180mOhm 8A 41V VCC |
Data Sheet |
|
|
||||||||||||
