Product Summary

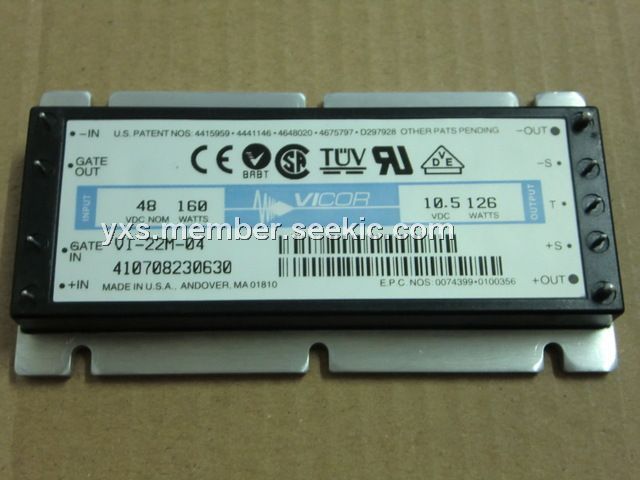

The VI-22M-04 is a 0 - 200W PCB mounting component.

Parametrics

VI-22M-04 specifications: (1)MTBF: >1,000,000 hrs; (2)Efficiency: 80%–90%; (3)Isolation input – output: 3750V rms; (4)Baseplate operating temp.: 85℃; (5)Shutdown temperature: 95℃; (6)Thermal shutdown: Yes, C, I, M grades.

Features

VI-22M-04 features: (1)Inputs: 10 to 400VDC; (2)Output, 1 to 95VDC; (3)UL, CSA, TUV, VDE, BABT, CF; (4)80-90% efficiency (typical); (5)ZCS power architecture; (6)Low noise FM control; (7)Booster versions available for expanded power.

Diagrams

VI-22M-04 dimensions
