TLP127

TLP127, programmable controller, SOP-4, 5V, 50mA, photocoupler

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.54 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.54

PartNumber:: TLP127

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:TLP127
US $0.32 - 0.54
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

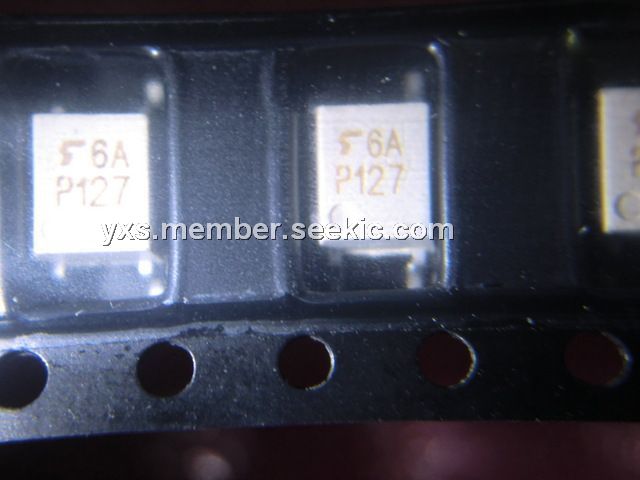

The TLP127 is a photocoupler. The TLP127 is a small outline coupler, suitable for surface mount assembly. The TLP127 consists of a gallium arsenide infrared emitting diode, optically coupled to a darlington photo trainsistor with an integral base-emitter resistor, and provides 300V.

Parametrics

TLP127 absolute maximum ratings: (1)Forward current, IF: 50 mA; (2)Forward current derating, ΔIF /℃: -0.5 (Ta≥53℃) mA /℃; (3)Pulse forward current, IFP: 1A; (4)Reverse voltage, VR: 5V; (5)Junction temperature, Tj: 125℃; (6)Collector-emitter voltage, VCEO: 300 V; (7)Emitter-collector voltage, VECO: 0.3 V; (8)Collector current, IC: 150 mA; (9)Collector power dissipation (1 Circuit), PC: 150 mW; (10)Collector power dissipation derating(Ta≥25℃) (1 Circuit), ΔPC /℃: -1.5 mW /℃; (11)Junction temperature, Tj: 125℃; (12)Operating temperature range, Topr: -55~125℃; (13)Storage temperature range, Tstg: -55~100℃; (14)Lead soldering temperature, Tsol: 260 (10s)℃; (15)Total package power dissipation (1 Circuit), PT: 200 mW; (16)Total package power dissipation derating (Ta≥25℃) (1 Circuit), ΔPT /℃: -2.0 mW /℃; (17)Isolation voltage, BVS: 2500(AC,1min,R.H.≤60%) Vrms.

Features

TLP127 features: (1)collector-emitter voltage: 300V(Min.); (2)current transfer ratio: 1000%(Min.); (3)Isolation voltage: 2500Vrms(Min.); (4)UL recognized: UL1577, File No.E67349.
