Product Summary

The STP10NK80ZFP is a Zener-Protected SuperMESH Power MOSFET. The STP10NK80ZFP is obtained through an extreme optimization of ST’s well established stripbased PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh products. The applications of the STP10NK80ZFP include high current, high speed switching, switch mode power supplies, dc-ac converters for welding, ups and motor drive.

Parametrics

STP10NK80ZFP absolute maximum ratings: (1)VDS Drain-source Voltage (VGS =0): 800 V; (2)VDGR Drain-gate Voltage: 800 V; (3)VGS Gate- source Voltage: ± 30 V; (4)ID Drain Current: 9 A; (5)ID Drain Current: 6 A; (6)IDM Drain Current (pulsed): 36 A; (7)PTOT Total Dissipation: 40W.

Features

STP10NK80ZFP features: (1)typical RDS(on) = 0.78Ω; (2)extremely high dv/dt capability; (3)100% avalanche tested; (4)gate charge minimized; (5)very low intrinsic capacitances; (6)very good manufacturing repeatibility.

Diagrams

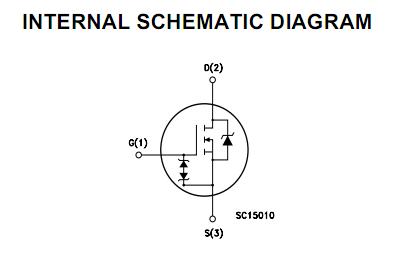

STP10NK80ZFP schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STP10NK80ZFP
STP10NK80ZFP
STMicroelectronics
MOSFET N-Ch 800 Volt 9 Amp Zener SuperMESH
Data Sheet
0-1: $1.92
1-10: $1.63
10-100: $1.43
100-250: $1.29
