Product Summary

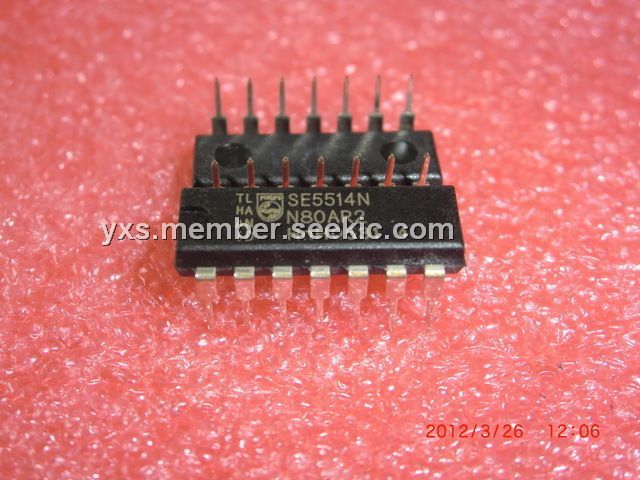

The SE5514N is a quad operational amplifier. It sets new standards in bipolar quad amplifier performance. The SE5514N features low input bias current and low offset voltages. Pinout is identical to SE5514N which facilitates direct product substitution for improved system performance in dual supply applications. Output characteristics are similar to a uA741 with improved slew and drive capability. The applications of the SE5514N are AC amplifiers, RC active filters, Transducer amplifiers, DC gain block and Instrumentation amplifier.

Parametrics

SE5514N absolute maximum ratings: (1)VCC Supply voltage: ±16 V; (2)VDIFF Differential input voltage: 32 V; (3)VIN Input voltage: 0 to 32 V; (4)TSTG Storage temperature range: -65 to +150℃; (5)TSOLD Lead soldering temperature (10sec max): 300℃; (6)TA Operating ambient temperature range: -55 to +125℃.

Features

SE5514N features: (1)Low input bias current: < ±3nA; (2)Low input offset current: < ±3nA; (3)Low input offset voltage:<1mV; (4)Low supply current: 1.5mA/A; (5)1V/μs slew rate; (6)High input impedance: 100MΩ; (7)High common-mode impedance: 10GΩ; (8)Internal compensation for unity gain; (9)600Ω drive capability (7VRMS).

Diagrams

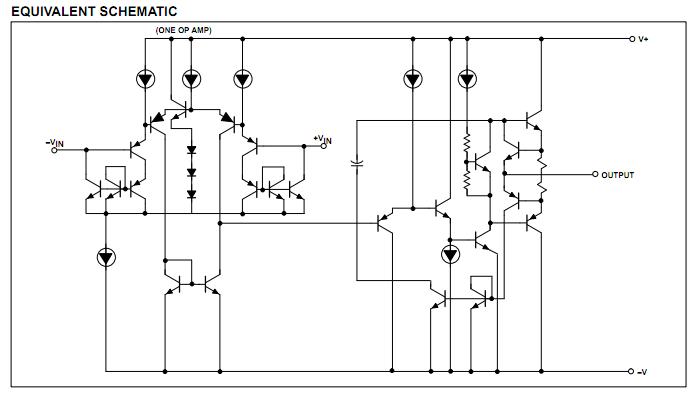

SE5514N block diagram
