Product Summary
The S3C4510X01-QERO is a RISC microcontroller. It is a cost-effective, high-performance microcontroller solution for Ethernet-based systems. An integrated Ethernet controller, the S3C4510X01-QERO, is designed for use in managed communication hubs and routers.RISC microcontroller is a cost-effective, high-performance microcontroller solution for Ethernet-based systems. An integrated Ethernet controller, the S3C4510X01-QERO, is designed for use in managed communication hubs and routers.
Parametrics
S3C4510X01-QERO absolute maximum ratings: (1)Supply Voltage, VDD/VDDA: – 0.3 to 3.8 V; (2)DC input Voltage, VIN: 3.3V; (3)DC input current, IIN: ± 10 mA; (4)Operating temperature, TOPR: 0 to 70℃; (5)Storage temperature, TSTG: – 40 to 125℃.
Features
S3C4510X01-QERO features: (1)Data alignment logic; (2)Endian translation; (3)100/10-Mbit per second operation; (4)Full compliance with IEEE standard 802.3; (5)MII and 7-wire 10-Mbps interface; (6)Station management signaling; (7)On-chip CAM (up to 21 destination addresses); (8)Full-duplex mode with PAUSE feature; (9)Long/short packet modes; (10)PAD generation.

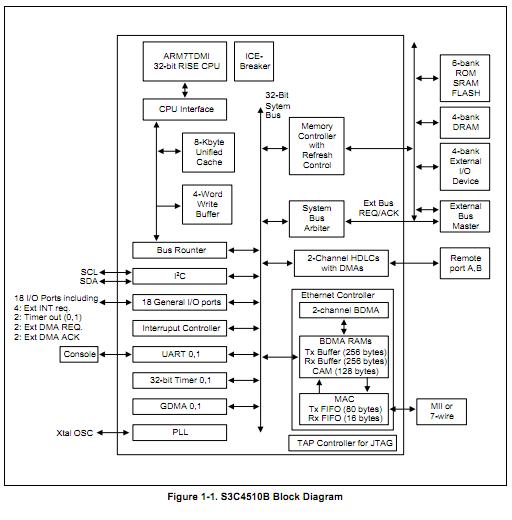

Diagrams
 |
