Product Summary

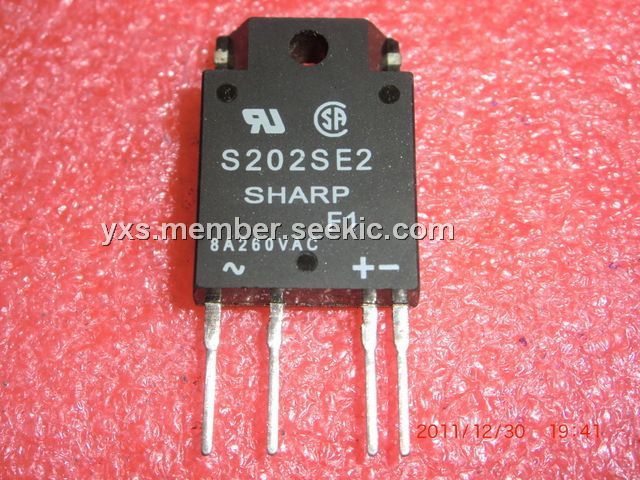

The S202SE2 is a SIP Type SSR for Medium Power Control. The applications are Copiers and Laser beam printers.
Parametrics
S202SE2 absolute maximum ratings: (1)Input, Forward current, IF: 50 mA; (2)Reverse voltage, VR: 6V; (3)Isolation voltage Viso: 3,000 V rms; (4)Operating temperature T opr: - 25 to + 100℃; (5)Storage temperature T stg: - 30 to + 125℃; (6)Soldering temperature Tsol: 260℃.
Features
S202SE2 features: (1) Comforms to European Safety Standard; (2)RMS ON-state current; (3)Isolation voltage between input and output; (4)Recognized by UL, No. E94758; (5)Approved by TUV, No. R9051479.

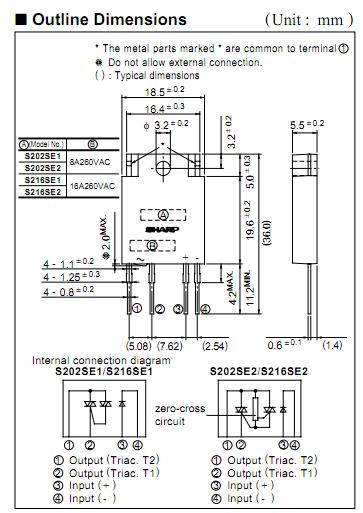

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S202SE2 |
|
RELAY SSR 240VAC 8A ZC 4-SIP |
Data Sheet |
Negotiable |
|
||||
 |
S202SE2F |
Sharp Microelectronics |
Solid State Relays 4-SIP ZERO-C 8mA |
Data Sheet |
Negotiable |
|
||||
