Product Summary

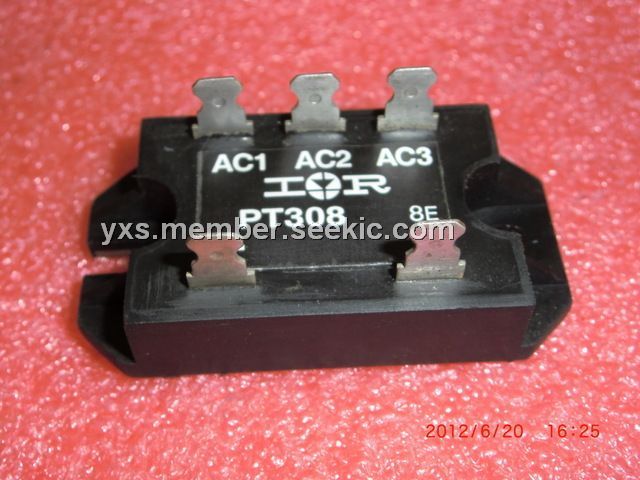

The PT308 is a diode module. It is designed for general use.
Parametrics
PT308 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage VRRM: 800 V; (2)Non Repetitive Peak Reverse Voltage VRSM: 1000 V; (3)Average Rectified Output Current IO(AV): 30 A; (4)Surge Forward Current IFSM: 450 A; (5)I Squared t I2t: 1000 A2s; (6)Operating Junction Temperature Range Tjw: -40 to +150 ℃; (7)Storage Temperature Range Tstg: -40 to +125 ℃; (8)Isoration Voltage Viso: 2000 V.
Features
PT308 features: (1)Isolated Base; (2)3 Phase Bridge Circuit; (3)Designed for Power Circuit Board; (4)High Surge Capability; (5)UL Recognized, File No. E187184.

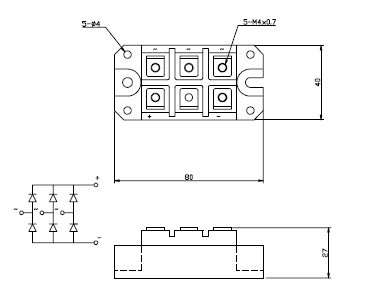

Diagrams
