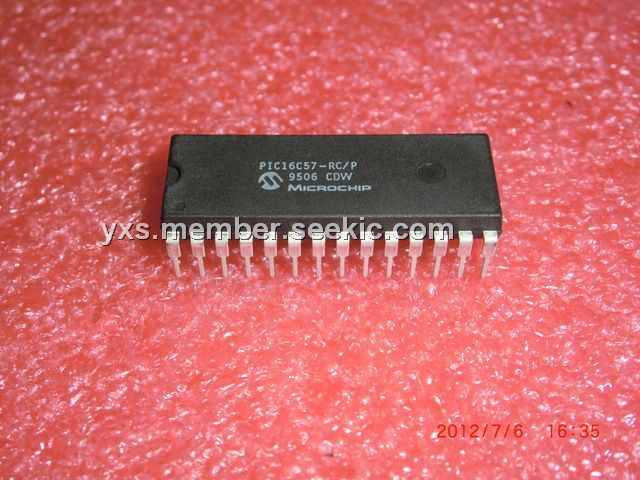

PIC16C57-RC/P

EPROM/ROM-Based 8-bit CMOS Microcontroller, 28DIP, 800 mW, 0V to +7.5V, 50 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.50

PartNumber:: PIC16C57-RC/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 95+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-02

From Other Seller

Part Number:PIC16C57-RC/P
US $2.00 - 3.50
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

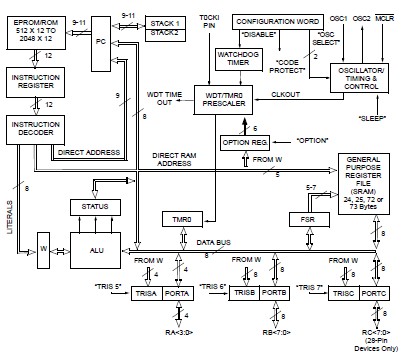

The PIC16C57-RC/P is an EPROM/ROM-Based 8-bit CMOS Microcontroller. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16C57-RC/P delivers performance in an order of magnitude higher than its competitors in the same price category.

Parametrics

PIC16C57-RC/P absolute maximum ratings: (1)Ambient Temperature under bias: –55℃ to +125℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +7.5V; (4)Voltage on MCLR with respect to VSS: 0V to +14V; (5)Voltage on all other pins with respect to VSS: –0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD pin: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 20 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 40 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.

Features

PIC16C57-RC/P features: (1)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler; (2)Power-on Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (5)Programmable Code Protection; (6)Power saving SLEEP mode.
