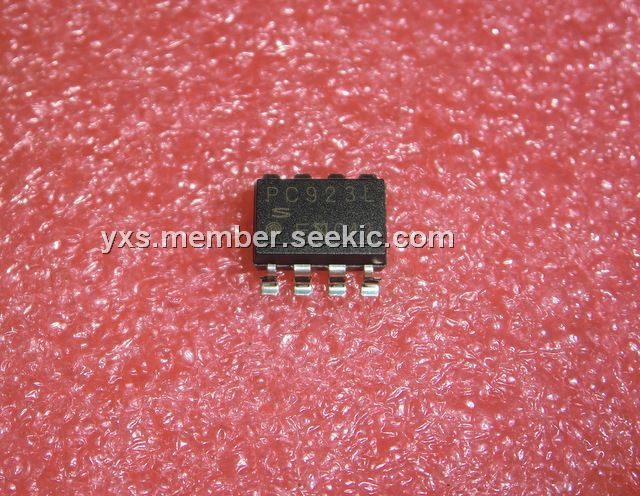

The PC923L0NIP0F is an OPIC Photocoupler. The PC923L0NSZ0F contains a LED optically coupled to an OPIC chip. The PC923L0NIP0F is packaged in a 8 pin DIP, available in SMT gullwing lead form option. Input-output isolation voltage(rms) is 5.0 kV, High speed response (tPHL, tPLH : MAX. 0.5 μs).
Parametrics

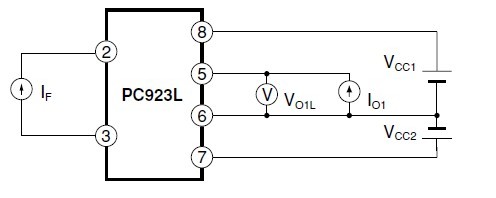

PC923L0NIP0F absolute maximum ratings: (1)Forward current: 20mA; (2)Reverse voltage: 5 V; (3)Total power dissipation: 550mW; (4)Isolation voltage: 5.0kV; (5)Operating temperature: -40 to 85 ℃; (6)Storage temperature: -55 to 125 ℃; (7)Soldering temperature: 270℃.
Features
PC923L0NIP0F features: (1)8 pin DIP package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)Built-in direct drive circuit for MOSFET / IGBT drive (IO1P, IO2P : 0.6 A); (4)High speed response (tPHL, tPLH : MAX. 0.5 μs); (5)Wide operating supply voltage range (VCC=15 to 30 V); (6)High noise immunity due to high instantaneous common mode rejection voltage (CMH : MIN. .15kV/μs, CML : MIN. 15kV/μs); (7)High isolation voltage between input and output (Viso(rms) : 5.0 kV).
