Product Summary

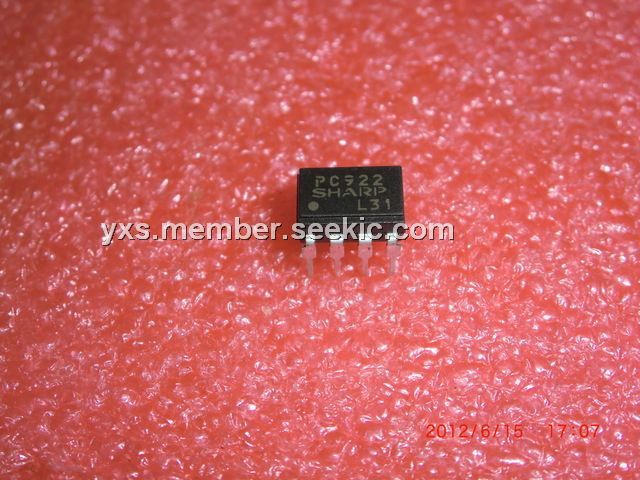

The PC922 is a High Power OPIC Photocoupler. The applications of it are Inverter controlled air conditioners, Small capacitance general purpose inverters.
Parametrics
PC922 absolute maximum ratings: (1)forward current:25mA; (2)reverse voltage:6V; (3)supply voltage:18V; (4)O1 output current:0.5A; (5)O1 peak output current:1.0A; (6)O2 output current:0.6A; (7)O2 peak output current:2.0A; (8)O1 outuput voltage:18V; (9)power dissipation:500mW; (10)total power dissipation:550mW; (11)isolation voltage:5000Vrms; (12)operating temperature:-20 to +80℃; (13)storage temperature:-55 to +125℃; (14)soldering temperature:260℃.
Features
PC922 features: (1)Built-in base amplifier for inverter drive; (2)High isolation voltage between input and output:5000Vrms; (3)High noise reduction type; (4)High speed response:max.5μs; (5)High sensitivity: max.3mA; (6)High power:max.0.5A DC, max.2.0A pulse; (7)Recognized by UL, file No. E64380.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC922 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
