Product Summary

The MX25L2005MC-12G is a CMOS 2,097,152 bit serial Flash memory, which is configured as 262,144 ×8 internally. The MX25L2005MC-12G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). SPI access to the device is enabled by CS input. The MX25L2005MC-12G provides sequential read operation on whole chip.

Parametrics

MX25L2005MC-12G absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 85℃; (2)Storage Temperature: -55 to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L2005MC-12G features: (1)Serial Peripheral Interface (SPI) compatible - Mode 0 and Mode 3; (2)2,097,152 x 1 bit structure; (3)64 Equal Sectors with 4K byte each: Any Sector can be erased individually; (4)4 Equal Blocks with 64K byte each: Any Block can be erased individually; (5)Single Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (6)?Latch-up protected to 100mA from -1V to Vcc +1V; (7)Low Vcc write inhibit is from 1.5V to 2.5V.

Diagrams

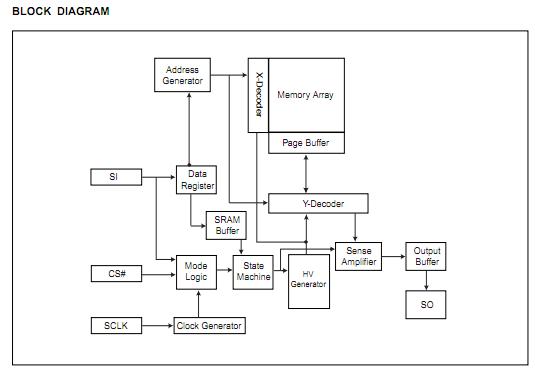

MX25L2005MC-12G block diagram
