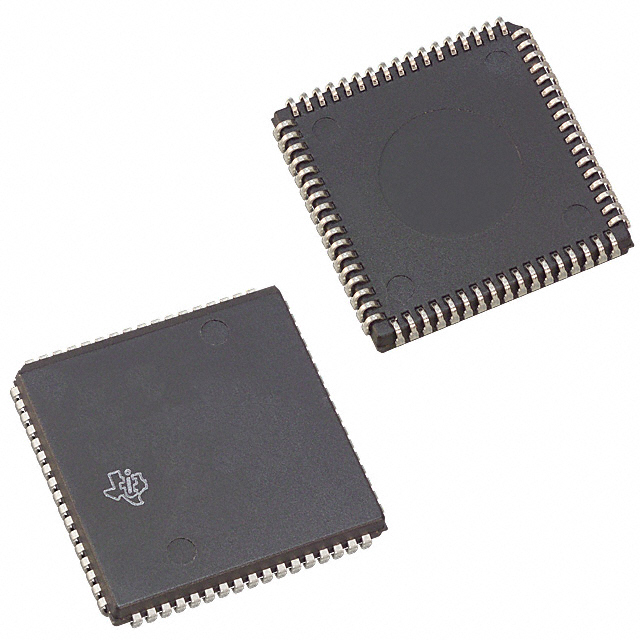

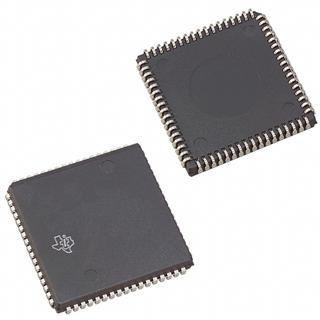

MSP430P325AIFN

Product Summary

The MSP430P325AIFN is an ultra-low power microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portablemeasurement applications. The MSP430P325AIFN features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 μs. Typical applications of the MSP430P325AIFN include sensor systems, industrial control applications, hand-held meters, etc.

Parametrics

MSP430P325AIFN absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0 . 3 V t o VCC +0.3V; (3)Diode current at any device terminal: ±2mA; (4)Storage temperature,Tstg:Unprogrammed device: -55 to 150℃; Programmed device: -40 to 105℃.

Features

MSP430P325AIFN feature: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultra-Low Power Consumption: Active Mode: 270 μAat1MHz,2.2V; Standby Mode (VLO): 0.3 μA; Off Mode (RAM Retention): 0.1 μA; (3)Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs; (4)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (5)Basic Clock Module Configurations: Internal Frequencies up to 16 MHz; Internal Very Low Power LF Oscillator; 32-kHz Crystal; Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%; Resonator; External Digital Clock Source; External Resistor; (6)12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature; (7)16-Bit Timer_A With Three Capture/Compare Registers; (8)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (9)Four Universal Serial Communication Interfaces (USCI): USCI_A0 and USCI_A1; Enhanced UART Supporting Auto-Baudrate Detection; IrDA Encoder and Decoder; Synchronous SPI; USCI_B0 and USCI_B1; I2Ct; Synchronous SPI; (10)On-Chip Comparator; (11)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (12)Brownout Detector; (13)Bootstrap Loader; (14)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse.

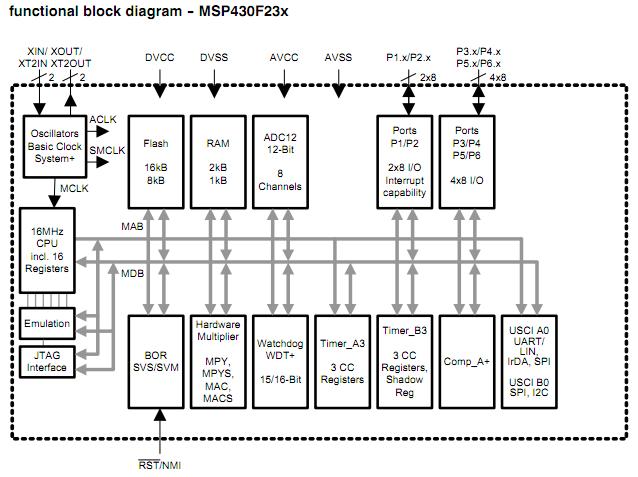

Diagrams
