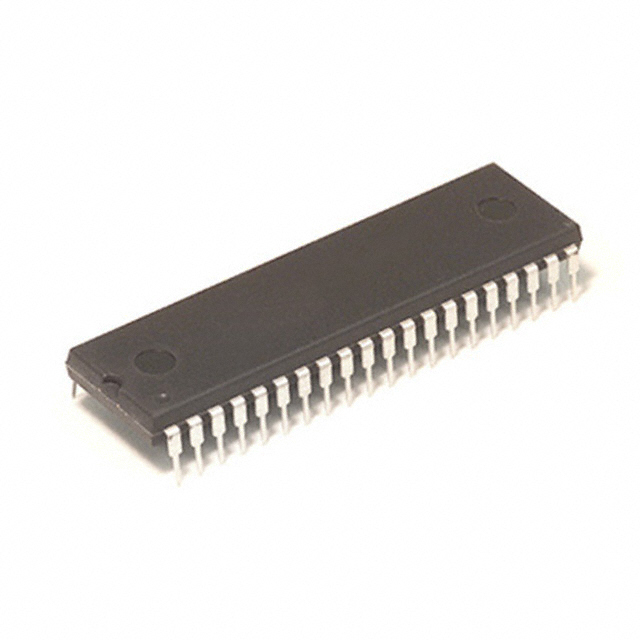

MC68HC705C8ACP

MC68HC705C8ACP, HCMOS Microcontroller unit, QFP-44, 7V, 25mA, Freescale Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: MC68HC705C8ACP

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MC68HC705C8ACP
US $5.00 - 60.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC68HC705C8ACP is a low-cost, high-performance of 8-bit microcontroller unit (MCU). The MC68HC705C8ACP, introduced in Appendix A. The MC68HC705C8ACP is based on the customer-specified integrated circuit (CSIC) design strategy. It uses the central processor unit (CPU) and is available with a variety of subsystems, memory sizes and types, and package types.

Parametrics

MC68HC705C8ACP absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to +7.0 V; (2)Input voltage, VIn: VSS -0.3 to VDD +0.3V; (3)Programming voltage, VPP: VDD -0.3 to 16.0; (4)Bootstrap mode (IRQ pin only), VIn: VSS -0.3 to 2 x VDD + 0.3V; (5)Current drain per pin excluding VDD and VSS, I: 25 mA; (6)Storage temperature range, TSTG: -65 to +150℃.

Features

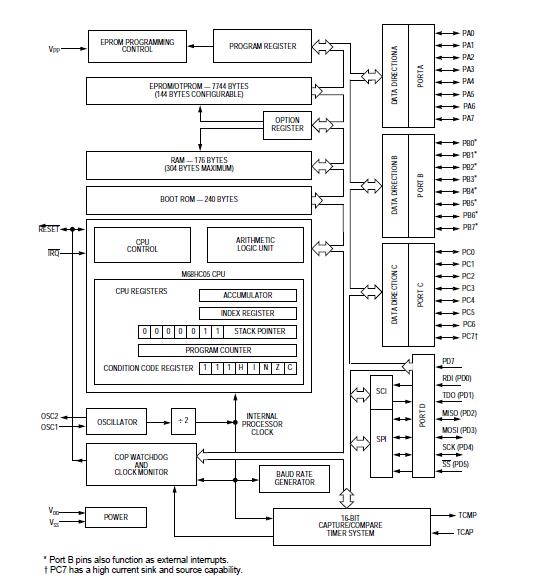

MC68HC705C8ACP features: (1)M68HC05 central processor unit (CPU); (2)On-chip oscillator with crystal/ceramic resonator; (3)Memory-mapped input/output (I/O); (4)Selectable memory configurations; (5)Selectable programmable and/or non-programmable computer operating properly (COP) watchdog timers; (6)Selectable port B external interrupt capability; (7)Clock monitor; (8)High current drive on pin C7 (PC7); (9)24 bidirectional I/O lines and 7 input-only lines; (10)Serial communications interface (SCI) system; (11)Serial peripheral interface (SPI) system; (12)Bootstrap capability; (13)Power-saving stop, wait, and data-retention modes; (14)Single 3.0-volt to 5.5-volt supply (2-volt data-retention mode); (15)Fully static operation; (16)Software-programmable external interrupt sensitivity; (17)Bidirectional RESET pin.
