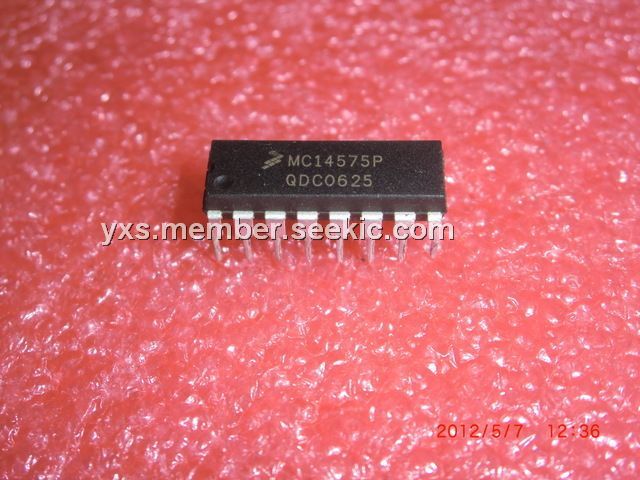

Product Summary

The MC14575P is a quad operational low power amplifier and comparator using the complementary P channel and N channel enhancement MOS devices in a single monolithic structure. The operating current of MC14575P is externally programmed with a resistor to provide a choice in the tradeoff of power dissipation and slew rates.

Parametrics

MC14575P absolute maximum ratings: (1)DC supply voltage: -0.5 to 18V; (2)Input volatge: -0.5 to VDD+0.5V; (3)DC Input current: ±10mA; (4)Programming current range: 2mA; (5)Operating temperature range: -40 to 85℃; (6)Storage temperature range: -65 to 150℃; (7)Package power dissipation: 800mW.

Features

MC14575P features: (1)operating temperature range: -40 to 85℃; (2)power supply: 3.0 to 15V; (3)Wide input volatge range; (4)common mode range: 2.0V; (5)Externally programmable power consumption with One or two resistors; (6)Internally compensated operational amplifiers; (7)High input impedance.

Diagrams

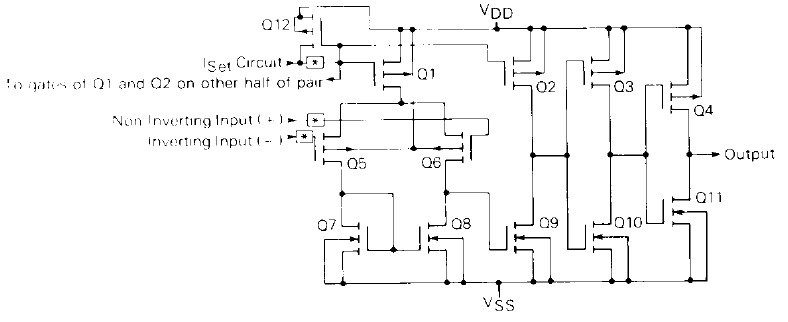

MC14575P diagram
