Product Summary

The AM9128-15PC is a 16384-bit static random access read-write memory organized as 2048 words of 8 bits. The AM9128-15PC uses fully static circuitry, requiring no clocks or refresh to operate. Directly TTL-compatible inputs and outputs and operation from a single +5V supply simplify system designs. Common data I/O pins using three-state outputs are provided. The AM9128-15PC is available in an industry standard 24-pin DIP package with 0.6-inch pin row spacing. The device uses the JEDEC standard pinput for byte-wide memories.

Parametrics

AM9128-15PC absolute maximum ratings: (1)storage temperature: -65 to 150℃; (2)ambient temperature with power applied: -55 to 125℃; (3)supply voltage: -0.5 to 7.0V; (4)signal voltage with respect to ground: -3.0V to 7.0V; (5)power dissipation: 1.0W; (6)DC output current: 10mA.

Features

AM9128-15PC features: (1)logic voltage levels compatible with TTL; (2)three-state output buffers and common I/O; (3)ICC max, as low as 100mA; (4)tAA/tACS as low as 70ns; (5)power-down mode.

Diagrams

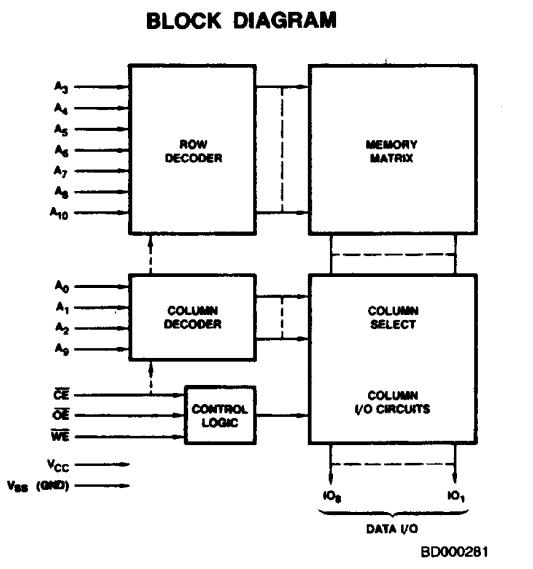

AM9128-15PC block diagram
