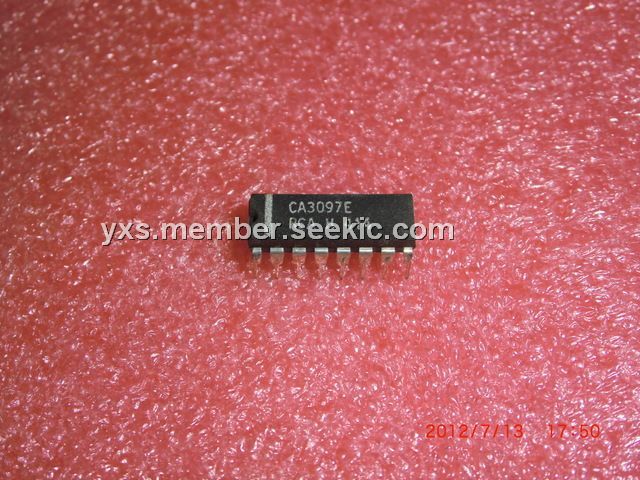

CA3097E

Thyristor/Transistor Array, DIP-16, +50 V, 750 mW, 100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~5.00

PartNumber:: CA3097E

Brand:: Harris Corporation - Harris | Pack: DIP | D/C: 94+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-02

From Other Seller

Part Number:CA3097E
US $2.50 - 5.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

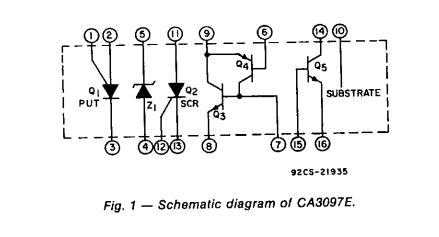

The CA3097E is a Thyristor/Transistor Array. It is a monolithic integrated circuit that enables circuit designers to further integrate control systems. The CA3097E consists of five independent and completely isolated elements on one chip: an n-p-n transistor, a p-n-p/n-p-n transistor pair, a zener diode, a programmable unijunction transistor (PUT), and a sensitive-gate silicon controlled rectifier (SCR). The CA3097E is supplied in either the 16-lead dual-in-line plastic package, and operates over the full miIitary-temperature range of-55 to +125℃. Applications of the CA3097E are Timers, Comparators, Schmitt triggers, Constant-current sources, Amplifiers and Logic circuits m SCR triggering _ Pulse circuits.

Parametrics

CA3097E absolute maximum ratings: (1)Isolation Voltage, any terminal to substrate: +50 V; (2)Dissipation: 750 mW; (3)Ambient Temperature Range: -55 to+ 125℃; (4)Storage temperature: -65 to +150℃; (5)Lead Temperature (During Soldering): +265℃; (6)Collector-to-Emitter Voltage (VcEO: 30V; (7)Collector-to-Base Voltage (VCBO): 50V; (8)Emitter-to-Base Voltage (V[BO): 5V; (9)Collector Current (IQ): 100 mA; (10)Base Current (IB): 20 mA; (11)Dissipation (PQ: 500 mW.

Features

CA3097E features: (1)Complete isolation between elements; (2)n-p~n transistor - VCEO = 30 V {min.) /c = 100 mA (max.); (3)p-n-p/n-p-n transistor pair - beta > 8000 (typ.) @ fc= 10 mA, individual p-n-p, n-p-n, or transistor pair operation m Programmable unijunction transistor [PUT] - peak-point current =15 nA {typ.) at RG = 1 MQ; VAK=土 30 V; (4)(PUT) Extremely long RC time constants with low value of external capacitor m Sensitive-gate silicon controlled rectifier {SCH) - 150 mA forward current (max.); (5)Zener-diode impedance (2z) = 750 (typ.) at 10 mA.
