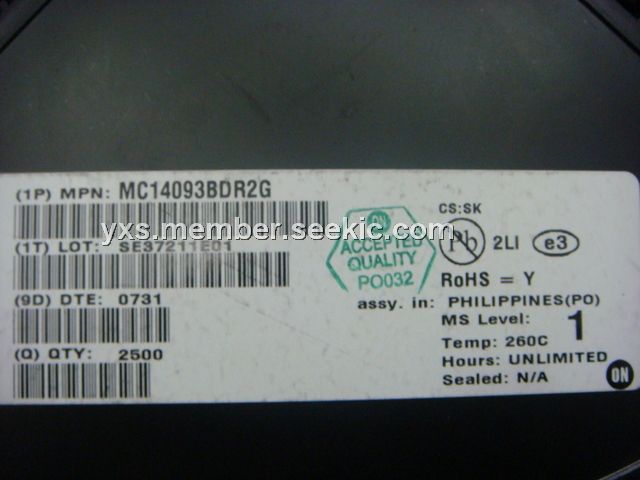

MC14093BDR2G

2-Input NAND Schmitt Trigger, 14SOIC, 3.0 Vdc to 18 Vdc, MC14093BDR2G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.24~0.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.24~0.56

PartNumber:: MC14093BDR2G

Brand:: ON Semiconductor - ON | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-24

From Other Seller

Part Number:MC14093BDR2G
US $0.24 - 0.56
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
MC34063AL

US $0.10 - 0.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC14093BDR2G is a Quad 2-Input NAND Schmitt Trigger. It is constructed with MOS P-channel and N-channel enhancement mode device in a single monolithic structure. The MC14093BDR2G finds primary use where low power dissipation and/or high noise immunity is desired. The MC14093BDR2G may be used in place of the MC14011B quad 2-input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.

Parametrics

MC14093BDR2G absolute maximum ratings: (1)VDD DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout Input or Output Voltage Range(DC or Transient): -0.5 to VDD + 0.5 V; (3)Iin, Iout Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)TA Ambient Temperature Range: -55 to +125 ℃; (6)Tstg Storage Temperature Range: -65 to +150 ℃; (7)TL Lead Temperature(8-Second Soldering): 260 ℃.

Features

MC14093BDR2G features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)Capable of Driving Two Low-Power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range; (3)Triple Diode Protection on All Inputs; (4)Pin-for-Pin Compatible with CD4093; (5)Can be Used to Replace MC14011B; (6)Independent Schmitt-Trigger at each Input; (7)Pb-Free Packages are Available.
