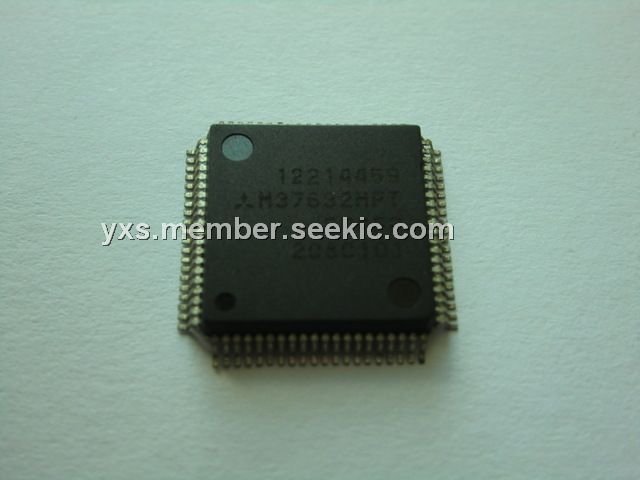

M37632MFT

M37632MFT, QFP, MITSUBISHI, single chip microcomputer, –0.3 to 7.0 V, 60 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $44.00~56.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $44.00~56.00

PartNumber:: M37632MFT

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: QFP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-23

From Other Seller

Part Number:M37632MFT
US $44.00 - 56.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The M37632MFT is a single chip microcomputer designed with CMOS silicon gate technology. Being equipped with a CAN (Controller Area Network) module, the M37632MFT is suited to drive automotive equipments. The CAN module complies with 2.0B specification and allows priority based message management. In addition to the microcomputers simple instruction set, the ROM, RAM and I/O addresses are placed in the same memory map to enable easy programming. The built-in ROM is available as mask ROM or One Time PROM. For development purposes emulator- and EPROM-type microcomputers are available as well.

Parametrics

M37632MFT absolute maximum ratings: (1)VCC, Power source voltage: –0.3 to 7.0 V; (2)VI, Input voltage: –0.3 to VCC + 0.3 V; (3)VO, Output voltage: –0.3 to VCC + 0.3 V; (4)Pd, Power dissipatio: 500 mW; (5)Topr, Operating temperature: –40 to 85℃; (6)Tstg, Storage temperature: –60 to 150℃.

Features

M37632MFT features: (1)Basic machine-language instructions: 71; (2)Minimum instruction execution time (at 10 MHz oscillation frequency): 0.2 μs; (3)Interrupts: 24 sources, 24 vectors; (4)Watchdog timer: 1; (5)CAN module 2.0B active: 1 channel Acceptance filter support unit(ASU); (6)A-D converte; 8-bits × 8 channels; (7)Clock generating circuit; (8)Power source voltage (at 10 MHz oscillation frequency): 4.0 to 5.5 V; (9)Power dissipation In high-speed mode: 60 mW (at 8 MHz oscillation frequency, at 5 V power source voltage); (10)Operating temperature range: -40 to 85℃; (11)Package 80 QFP (80P6S-A).
