Product Summary

The M2LZ47 is a triode thyristor. It is suitable for AC power control applications.

Parametrics

M2LZ47 absolute maximum ratings: (1)Repetitive Peak Off-State Voltage, VDRM: 800 V; (2)R.M.S. On-State Current, IT (RMS): 2 A; (3)Peak One Cycle Surge On-State Current (Non-Repetitive), ITSM: 8.8A (60Hz); (4)I2t Limit Value, I2t: 0.32 A2s; (5)Critical Rate of Rise of On-State Current, di/dt: 50 A/μs; (6)Peak Gate Power Dissipation, PGM: 3 W; (7)Average Gate Power Dissipation, PG (AV): 0.3 W; (8)Peak Gate Voltage VFGM: 10 V; (9)Peak Gate Current IGM: 1.6 A; (10)Junction Temperature Tj: -40~125℃; (11)Storage Temperature Range Tstg: -40~125℃; (12)Isolation Voltage (AC, t = 1min.) VISOL: 1500 V.

Features

M2LZ47 features: (1)Repetitive Peak Off?State Voltage: VDRM = 800V; (2)R.M.S. On?State Current: IT (RMS) = 2A; (3)High Commutation (dv / dt): (dv / dt) c = 5V / μs (Min.); (4)Isolation Voltage: VISOL = 1500V AC.

Diagrams

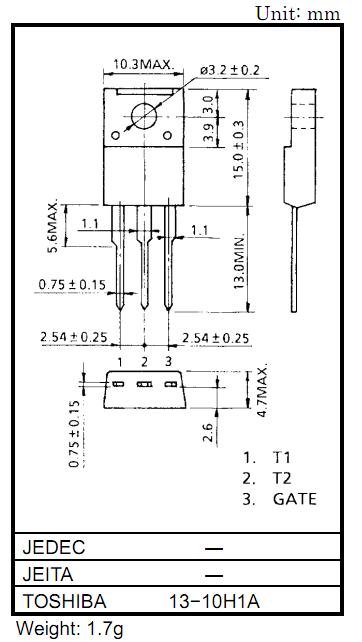

M2LZ47 dimensions
