Product Summary

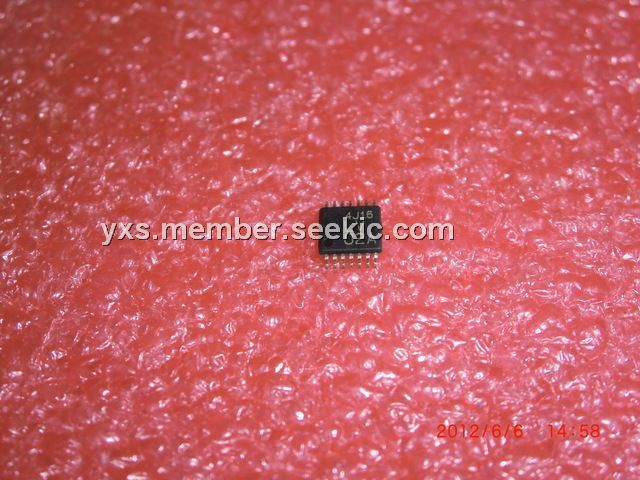

The LV02A is a quadruple 2-input positive-NOR gate designed for 2-V to 5.5-V VCC operation. It is fully specified for partial-power-down applications using Ioff.
Parametrics
LV02A absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI:0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 7 V; (5)Output voltage range, VO: -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -20 mA; (6)Output clamp current, IOK (VO < 0): -50 mA.
Features
LV02A features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 6.5 ns at 5 V; (3)Support Mixed-Mode Voltage Operation on All Ports; (4)Ioff Supports Partial-Power-Down Mode Operation; (5)Latch-Up Performance Exceeds 250 mA Per JESD 17.
Diagrams
 |
 LV0220CS |
Other |
|
Data Sheet |
Negotiable |
|
||||
