Product Summary

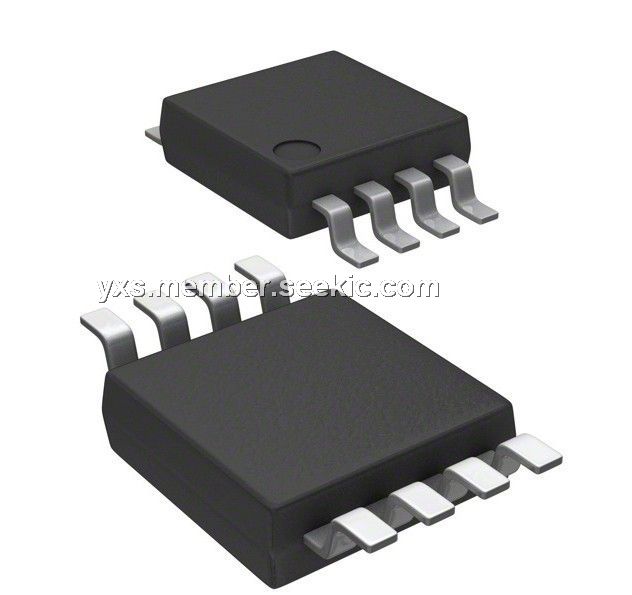

The LTC2053IMS8 is a high precision instrumentation amplifier. The CMRR is typically 116dB with a single or dual 5V supply and is independent of gain. The input offset voltage is guaranteed below 10μV with a temperature drift of less than 50nV/℃. The LTC2053IMS8 is easy to use; the gain is adjustable with two external resistors, like a traditional op amp. The applications of the LTC2053IMS8 include Thermocouple Amplifiers, Electronic Scales, Medical Instrumentation, Strain Gauge Amplifiers and High Resolution Data Acquisition.

Parametrics

LTC2053IMS8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 11V; (2)Input Current: ±10mA; (3)Output Short Circuit Duration: Indefinite; (4)Operating Temperature Range: 0 to 70℃; (5)Storage Temperature Range:–65 to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC2053IMS8 features: (1)116dB CMRR Independent of Gain; (2)Maximum Offset Voltage: 10μV; (3)Maximum Offset Voltage Drift: 50nV/℃; (4)Rail-to-Rail Input; (5)Rail-to-Rail Output; (6)2-Resistor Programmable Gain; (7)Supply Operation: 2.7V to ±5.5V; (8)Typical Noise: 2.5μVP-P (0.01Hz to 10Hz); (9)Typical Supply Current: 750μA; (10)LTC2053-SYNC Allows Synchronization to External Clock; (11)Available in MS8 and 3mm × 3mm × 0.8mm DFN Packages.

Diagrams

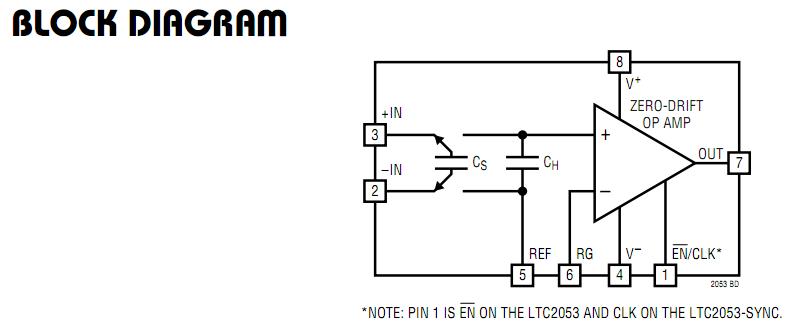

LTC2053IMS8 block diagram
