Product Summary

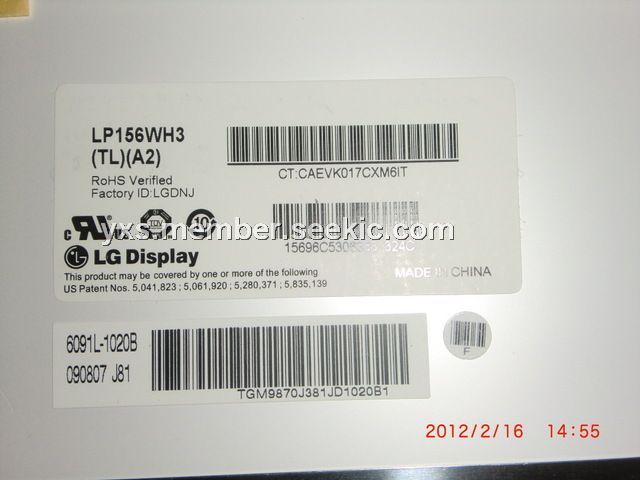

The LP156WH3-TLA2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LP156WH3-TLA2 is a transmissive type display operating in the normally white mode. This TFT-LCD LP156WH3-TLA2 has 15.6 inches diagonally measured active display area with HD resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.
Parametrics
LP156WH3-TLA2 absolute maximum ratings: (1)power input voltage, VCC: -0.3 to 4.0Vdc; (2)operating temperature, Top: 0 to 50℃; (3)storage temperature, HST: -20 to 60℃; (4)operating ambient humidity, HOP: 10 to 90%RH; (5)storage humidity, HST: 10 to 90%RH.
Features
LP156WH3-TLA2 features: (1)Active Screen Size: 15.6 inches diagonal; (2)pixel pithch: 0.252mm×0.252mm; (3)pixel format: 1366 horiz, by 768 vert. pixels RGB strip arrangement; (4)color depth: 6 bit, 262144 colors; (5)luminance, white: 200cd/m2; (6)power consumption: total 4.17Watt; (7)weight: 420g; (8)display operating mode: transimissive mode, normally white; (9)surface treatment: hard coating, glare treatment of the front polarizer; (10)RoHS comply: Yes.

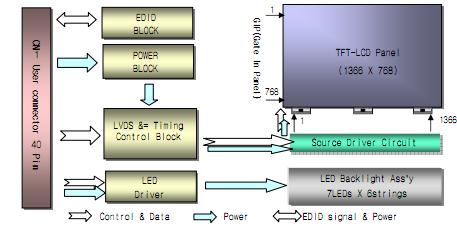

Diagrams
 |
