LM5070MTC-50/NOPB

PWM controller, TSSOP16, -0.3V to 80V, LM5070MTC-50/NOPB, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~4.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~4.90

PartNumber:: LM5070MTC-50/NOPB

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-17

From Other Seller

Part Number:LM5070MTC-50/NOPB
US $2.50 - 4.90
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

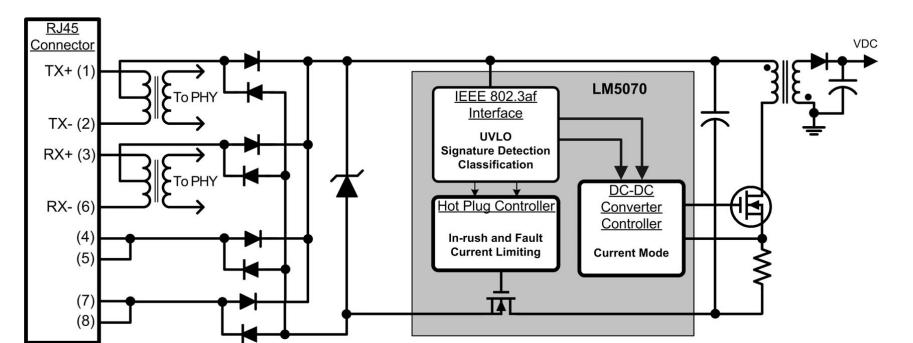

The LM5070MTC-50/NOPB is a power interface port and pulse width modulation (PWM) controller provides a complete integrated solution for Powered Devices (PD) that connect into Power over Ethernet (PoE) systems. TheLM5070MTC-50/NOPB integrates an 80V, 400mA line connection switch and associated control for a fully IEEE 802.3af compliant interface with a full featured current mode pulse width modulator dc-dc converter. All power sequencing requirements between the controller interface and switch mode power supply (SMPS) are integrated into the IC. Two options are available providing either an 80% maximum duty cycle limit with slope compensation (on the –80 suffix) device or a 50% maximum duty cycle limit and no slope compensation on the (–50 suffix) device.

Parametrics

LM5070MTC-50/NOPB absolute maximum ratings: (1)VIN ,RTN to VEE: -0.3V to 80V; (2)RSIG to VIN: -12V to 0V; (3)UVLO to VEE: -0.3V to 57V; (4)UVLORTN: -0.3V to 13V; (5)RCLASS, RCLP to VEE: -0.3V to 7V; (6)ARTN to RTN: -0.3V to 0.3V; (7)VCC, OUT to ARTN: -0.3V to 16V; (8)All other inputs to ARTN: -0.3V to 7V; (9)Storage Temperature: -65 to +150℃; (10)Junction Temperature: 150℃.

Features

LM5070MTC-50/NOPB features: (1)Fully Compliant 802.3af Power Interface Port; (2)80V, 1?, 400 mA Internal MOSFET; (3)Programmable Inrush Current Limit; (4)Detection Resistor Disconnect Function; (5)Programmable Classification Current; (6)Programmable Under-voltage Lockout with Programmable Hysteresis; (7)Thermal Shutdown Protection; (8)Current Mode Pulse Width Modulator; (9)Supports both Isolated and Non-Isolated Applications; (10)Error Amplifier and Reference for Non-Isolated Applications; (11)Programmable Oscillator Frequency; (12)Programmable Soft-start; (13)80% Maximum Duty Cycle Limiter, Slope Compensation (-80 device); (14)50% Maximum Duty Cycle Limiter, No Slope Compensation (-50 device); (15)800 mA Peak Gate Driver.
