Product Summary

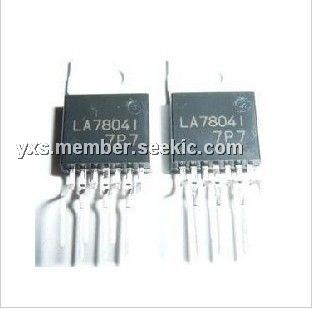

The LA78041 is a monolithic linear IC. The LA78041 is a vertical deflection output IC for high image quality TV and CRT displays that supports the use of a bus control system signal-processing IC. The sawtooth waveform from the bus control system signal-processing IC can directly drive the deflection yoke. Color TV vertical deflection system adjustment functions can be controlled over a bus system adjustment functions can be controlled over a bus system by connecting the LA78041.
Parametrics
LA78041 absolute maximum ratings: (1)Pump-up block supply voltage, +B2: 34V; (2)Output block supply voltage, +B6: 70V; (3)Allowable power dissipation, pd: 9W; (4)Deflection output current: -1.5 to +1.5 Ap-o; (5)Thermal resistance: 3 ℃/W; (6)Operating temperature, Topr: -20 to 85℃; (7)Storage temperature, Tstg: 40 to +150℃.
Features
LA78041 features: (1)Low power operation achieved by using integrated charge pump circuit; (2)Vertical output ciruit; (3)Excellent crossover characteristics; (4)Supports DC coupling.

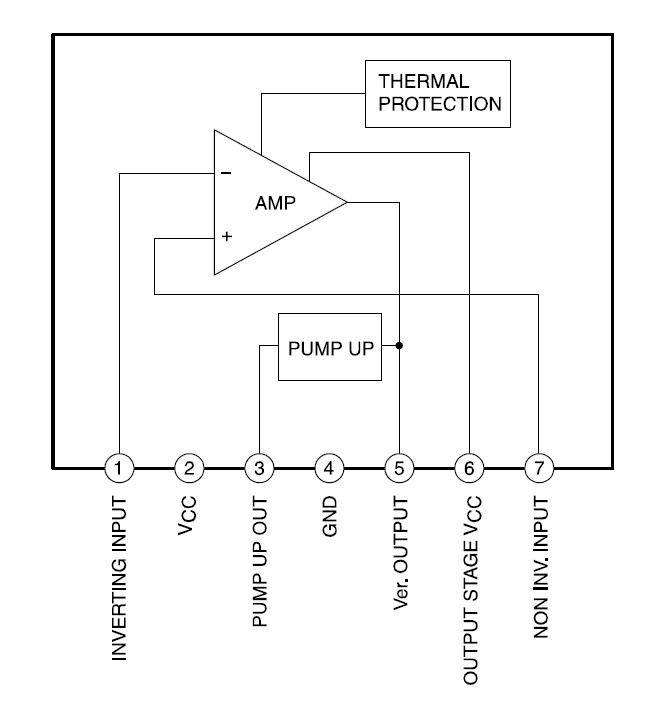

Diagrams
