KSZ8041NL

QFN32, 10Base-T/100Base-TX, Physical Layer Transceiver, ESD rating, -0.5V to +2.4V, 6kV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~6.00

PartNumber:: KSZ8041NL

Brand:: Micrel Semiconductor - Micrel | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-17

From Other Seller

Part Number:KSZ8041NL
US $2.00 - 6.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

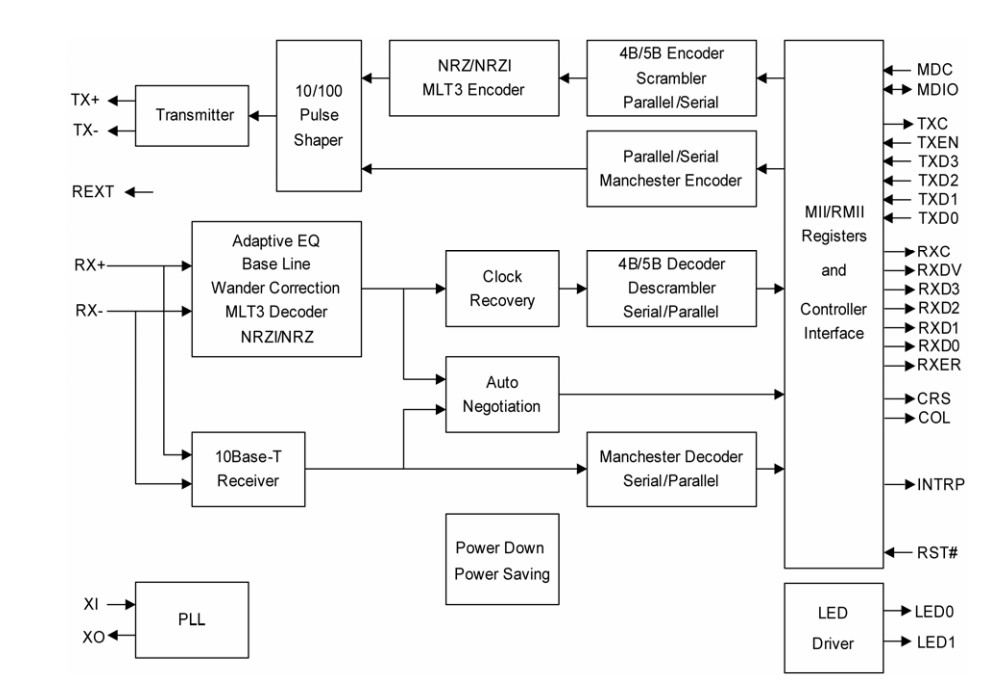

The KSZ8041NL is a single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII interfaces to transmit and receive data. An unique mixed signal design extends signaling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. The KSZ8041NL represents a new level of features and performance and is an ideal choice of physical layer transceiver for 10Base-T/100Base-TX applications.

Parametrics

KSZ8041NL absolute maximum ratings: (1)(VDDPLL_1.8): -0.5V to +2.4V; (2)(VDDIO_3.3, VDDA_3.3): -0.5V to +4.0V; (3)Input Voltage (all inputs): -0.5V to +4.0V; (4)Output Voltage (all outputs): -0.5V to +4.0V; (5)Lead Temperature (soldering, 10sec.): 260℃; (6)Storage Temperature (Ts): -55 to +150℃; (7)ESD Rating(3): 6kV.

Features

KSZ8041NL features: (1)Single-chip 10Base-T/100Base-TX physical layer solution ; (2)Fully compliant to IEEE 802.3u Standard ; (3)Low power CMOS design, power consumption of <180mW ; (4)HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option; (5)Robust operation over standard cables; (6)Power down and power saving modes; (7)MII interface support; (8)RMII interface support with external 50MHz system clock; (9)MIIM (MDC/MDIO) management bus for PHY register configuration; (10)Interrupt pin option; (11)Programmable LED outputs for link, activity and speed; (12)ESD rating (6kV); (13)Single power supply (3.3V); (14)Built-in 1.8V regulator for core; (15)Available in 32-pin (5mm x 5mm) MLF package.
