Product Summary

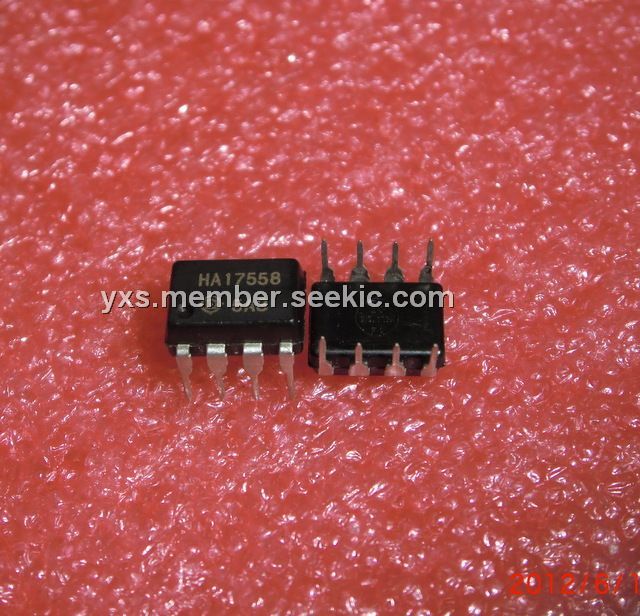

The HA17558 is a dual operational amplifier which provides internal frequency compensation and high performance. It can be applied widely to measuring control equipment and to general Use.
Parametrics
HA17558 absolute maximum ratings: (1)Supply voltage, VCC: +18 V;VEE: –18 V; (2)Differential input voltage, VIN (diff): ±30V; (3)Common-mode input voltage, VCM: ±15V; (4)Power dissipation, PT: 670W; (5)Operating temperature, Topr: –20 to +75℃; (6)Storage temperature, Tstg: –55 to +125℃.
Features
HA17558 features: (1)High voltage Gain: 104dB (Typ); (2)High speed: 1V/μs; (3)Continuous short-circuit protection; (4)Low-noise operational amplifiers; (5)Internal frequency compensation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA17558B |
Other |
|
Data Sheet |
Negotiable |
|
||||
