Product Summary
The H11L1SM is a 6-Pin DIP Optocoupler has a high speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit of the H11L1SM is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility. The applications of the H11L1SM include: (1)Logic to logic isolator; (2)Programmable current level sensor; (3)Line receiver-eliminate noise and transient problems; (4)A.C. to TTL conversion-square wave shaping; (5)Digital programming of power supplies; (6)Interfaces computers with peripherals.
Parametrics
H11L1SM absolute maximum ratings: (1)TSTG, Storage Temperature: -40 to +150 ℃; (2)TOPR, Operating Temperature: -40 to +85 ℃; (3)TSOL, Lead Solder Temperature: 260 for 10 sec ℃; (4)PD, Total Device Power Dissipation @ 25℃: 250 mW; Derate Above 25℃: 2.94 mW/℃.
Features
H11L1SM features: (1)High data rate, 1MHz typical (NRZ); (2)Free from latch up and oscilliation throughout voltage and temperature ranges; (3)Microprocessor compatible drive; (4)Logic compatible output sinks 16mA at 0.4V maximum; (5)Guaranteed on/off threshold hysteresis; (6)Wide supply voltage capability, compatible with all popular logic systems; (7)Underwriters Laboratory (UL) recognized—file #E90700, Volume 2; (8)VDE recognized – File#102497 – Add option V (e.g., H11LIVM).

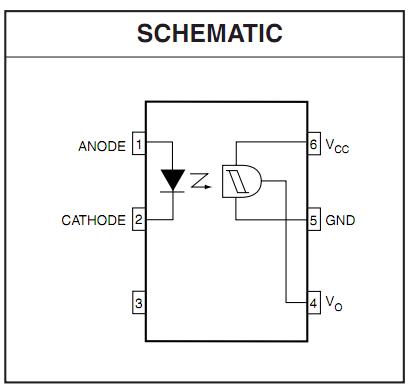

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H11L1SM |
Fairchild Semiconductor |
Logic Output Optocouplers SO-6 SCHMITT TRIG |
Data Sheet |
|
|
||||||||||||
|
H11L1SM_Q |
Fairchild Semiconductor |
Logic Output Optocouplers SO-6 SCHMITT TRIG |
Data Sheet |
Negotiable |
|
||||||||||||
