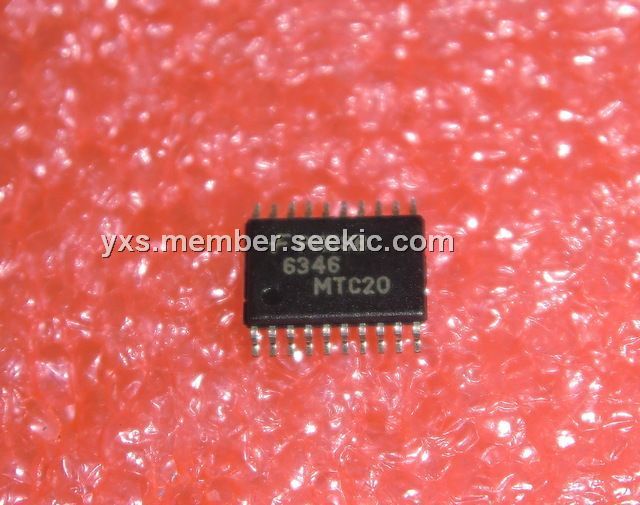

FMS6346MTC20X

Low Cost Video Filter, TSSOP, -0.3 to 6 V, 50 mA, FMS6346MTC20X, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~0.95

PartNumber:: FMS6346MTC20X

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:FMS6346MTC20X
US $0.65 - 0.95
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FMS6346MTC20X is a Low Cost Video Filter (LCVF). It is intended to replace passive LC filters and drivers with a low-cost integrated device. Six 6th order Butterworth filters provide improved image quality compared to typical passive solutions. The combination of low power Standard Definition (SD) and High Definition (HD) filters greatly simplify DVD video output circuitry. Three channels offer fixed SD filters while the other three are selectable between SD and HD filters. The applicatons of the FMS6346MTC20X are Cable and Satellite set top boxes, DVD players, HDTV, Personal Video Recorders (PVR) and Video On Demand (VOD).

Parametrics

FMS6346MTC20X absolute maximum ratings: (1)DC Supply Voltage: -0.3 to 6 V; (2)Analog and Digital I/O: -0.3 to Vcc + 0.3 V; (3)Output Current, Any One Channel (Do Not Exceed): 50 mA.

Features

FMS6346MTC20X features: (1)Three selectable sixth-order 8/32MHz (SD/HD) filters; (2)Three fixed sixth-order 8MHz (SD) filters; (3)Transparent input clamping; (4)Single video load drive (2Vpp, 150?, AV = 6dB); (5)AC or DC-coupled inputs; (6)AC or DC-coupled outputs; (7)DC-coupled outputs eliminate AC-coupling capacitors; (8)Low Power; (9)5V only; (10)Robust (12kV HBM) output ESD protection; (11)Lead (Pb) Free packages - TSSOP-20.
