Product Summary

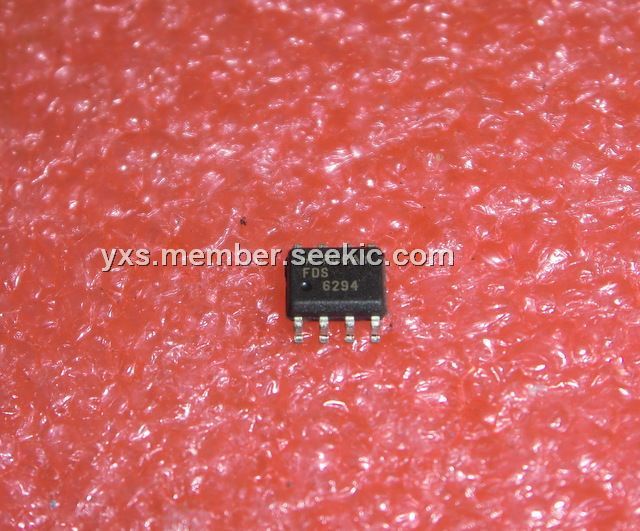

The FDS6294 is an N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. Applications of the FDS6294 are DC/DC converter, Power management and Load switch.
Parametrics
FDS6294 absolute maximum ratings: (1)VDSS Drain-Source Voltage: 30 V; (2)VGSS Gate-Source Voltage: ± 20 V; (3)ID Drain Current – Continuous: 13 A; (4)Power Dissipation for Single Operation, PD: 3.0W; (5)EAS Single Pulse Avalanche Energy: 181 mJ ; (6)TJ, TSTG Operating and Storage Junction Temperature Range: –55 to +175℃.
Features
FDS6294 features: (1)13 A, 30 V. RDS(ON) = 11.3 mW @ VGS = 10 V, RDS(ON) = 14.4 mW @ VGS = 4.5 V; (2)Low gate charge (10 nC typical); (3)High performance trench technology for extremely low RDS(ON) ; (4)High power and current handling capability; (5)RoHS Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDS6294 |
Fairchild Semiconductor |
MOSFET 30V N-Ch PowerTrench Fast Switching |
Data Sheet |
|
|
||||||||||||
|
FDS6294_Q |
Fairchild Semiconductor |
MOSFET 30V N-Ch PowerTrench Fast Switching |
Data Sheet |
Negotiable |
|
||||||||||||
