EP910ILC-15

Product Summary

The EP910ILC-15 is an EPLD. It offers a solution to high-speed, low-power logic integration. Fabricated on advanced CMOS technology, the EP910ILC-15 also has a Turbo-only version, which is described in this data sheet. It supports 100% TTL emulation and can easily integrate multiple PAL- and GAL-type devices with densities ranging from 300 to 900 usable gates. The EP910ILC-15 provides pin-to-pin logic delays as low as 10 ns and counter frequencies as high as 100 MHz. The EP910ILC-15 is available in a wide range of packages, including ceramic dual in-line package (CerDIP), plastic dual in-line package (PDIP), plastic J-lead chip carrier (PLCC), ceramic J-lead chip carrier (JLCC), pin-grid array (PGA), and small-outline integrated circuit (SOIC) packages.

Parametrics

EP910ILC-15 absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –2.0 to 7.0V; (2)VI,DC input voltage: –2.0 to 7.0V; (3)IMAX, DC VCC or ground current: –175 to 175 mA; (4)IOUT, DC output current, per pin: –25 to 25 mA; (5)TSTG, Storage temperature No bias: –65 to 150℃; (6)TAMB, Ambient temperature Under bias: –65 to 135℃; (7)TJ, Junction temperature Ceramic packages, under bias: 150℃.

Features

EP910ILC-15 features: (1)Complete device family with logic densities of 300 to 900 usable gates; (2)Device erasure and reprogramming with non-volatile EPROM configuration elements; (3)Fast pin-to-pin logic delays as low as 10 ns and counter frequencies as high as 100 MHz; (4)24 to 68 pins available in dual in-line package (DIP), plastic J-lead chip carrier (PLCC), pin-grid array (PGA), and small-outline integrated circuit (SOIC) packages; (5)Programmable security bit for protection of proprietary designs; (6)100% generically tested to provide 100% programming yield; (7)Programmable registers providing D, T, JK, and SR flipflops with individual clear and clock controls; (8)Software design support featuring the Altera MAX+PLUS II development system on Windows-based PCs, as well as Sun SPARCstation, HP 9000 Series 700/800, IBM RISC System/6000 workstations, and third-party development systems; (9)Programming support with Altera’s Master Programming Unit (MPU); programming hardware from Data I/O, BP Microsystems, and other third-party programming vendors; (10)Additional design entry and simulation support provided by EDIF, library of parameterized modules (LPM), Verilog HDL, VHDL, and other interfaces to popular EDA tools from manufacturers such as Cadence, Exemplar Logic, Mentor Graphics, OrCAD, Synopsys, Synplicity, and VeriBest.

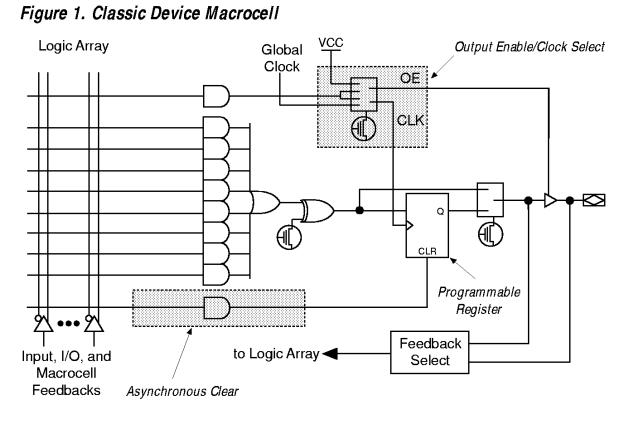

Diagrams
