Product Summary

The EFB0405VHD-R00 is a fan.

Parametrics

EFB0405VHD-R00 absolute maximum ratings: (1)rated voltage: 5VDC; (2)operating votlage range: 4.5 to 5.5VDC; (3)rated current: 0.32Amp; (4)rated input power: 1.6Watt; (5)speed: 900rpm.

Features

EFB0405VHD-R00 features: (1)Bearing Type Ball Bearings; (2)Material Impeller & Frame: Plastic (UL 94V-0); (3)Lead Wires: UL 1007 AWG #24 O Equivalent; Red Wire Positive (+); Black Wire Negative (-); (4)Weight : 33g (1.16 oz); (5)Rib Type Only.

Diagrams

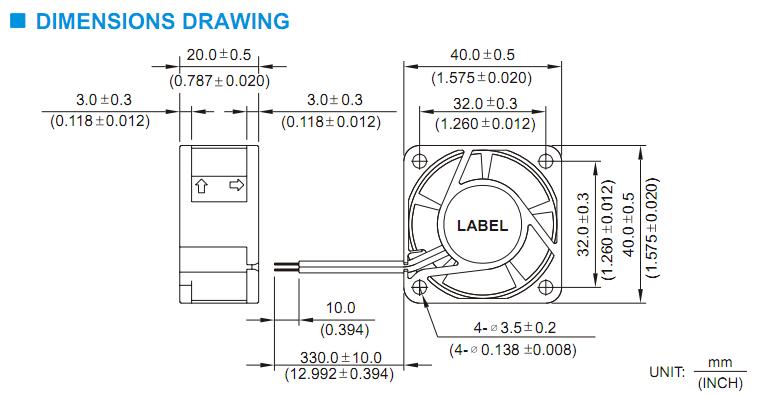

EFB0405VHD-R00 dimensions

EFB0405HA
EFB0405HA

5V DC FAN 40X40X10 MM
Data Sheet
0-1: $5.99
1-10: $5.48
10-25: $4.59
25-50: $4.21
50-100: $3.70
100-250: $3.44
250-500: $3.19
500-1000: $3.06
EFB0405LD-R00
EFB0405LD-R00

5V DC FAN 40X40X20 MM
Data Sheet
0-1: $7.05
1-10: $6.45
10-25: $5.40
25-50: $4.95
50-100: $4.35
100-250: $4.05
250-500: $3.75
500-1000: $3.60
EFB0405MD-9B48
EFB0405MD-9B48

FAN DC AXIAL 5V 40X20 CUST MOD
Data Sheet
0-200: $4.18
EFB0405VHD
EFB0405VHD

5V DC FAN 40X40X20 MM
Data Sheet
0-1: $6.70
1-10: $6.13
10-25: $5.13
25-50: $4.70
50-100: $4.13
100-250: $3.85
250-500: $3.56
500-1000: $3.42
EFB0405VHD-F00
EFB0405VHD-F00

FAN DC AXIAL 5V 40X20 TAC OUT
Data Sheet
0-1: $7.05
1-10: $6.45
10-25: $5.40
25-50: $4.95
50-100: $4.35
100-250: $4.05
250-500: $3.75
500-1000: $3.60
EFB0412HA
EFB0412HA

FAN DC AXIAL 12V 40X10 6000RPM
Data Sheet
0-1: $5.99
1-10: $5.48
10-25: $4.59
25-50: $4.21
50-100: $3.70
100-250: $3.44
250-500: $3.19
500-1000: $3.06
