Product Summary

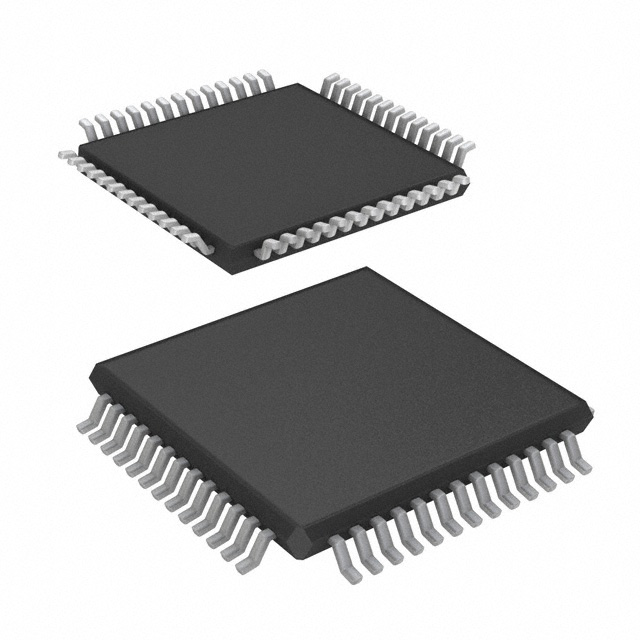

The DS87C530-ECL is an EPROM/ROM microcontroller with a real-time clock (RTC). The DS87C530-ECL uses 4 clocks per instruction cycle instead of the 12 used by the standard 8051. The DS87C530-ECL also provide a unique mix of peripherals not widely available on other processors. They include an on-chip RTC and battery backup support for an on-chip 1k x 8 SRAM. The new Power Management Mode allows software to select reduced power operation while still processing.
Parametrics
DS87C530-ECL absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to (VCC + 0.5V); (2)Voltage Range on VCC Relative to Ground: -0.3V to +6.0V; (3)Operating Temperature Range: 0 to +70℃; (4)Storage Temperature Range: -55 to +125℃.
Features
DS87C530-ECL features: (1)EMI Reduction Mode Disables ALE; (2)Two Full-Duplex Hardware Serial Ports; (3)High Integration Controller Includes: Power-Fail Reset Early-Warning Power-Fail Interrupt Programmable Watchdog Timer; (4)14 Total Interrupt Sources with Six External.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS87C530-ECL |
Maxim Integrated Products |
8-bit Microcontrollers (MCU) EPROM MCU w/RTC |
Data Sheet |
Negotiable |
|
||||
|
DS87C530-ECL+ |
Maxim Integrated Products |
8-bit Microcontrollers (MCU) EPROM MCU w/RTC |
Data Sheet |
Negotiable |
|
||||
