Product Summary

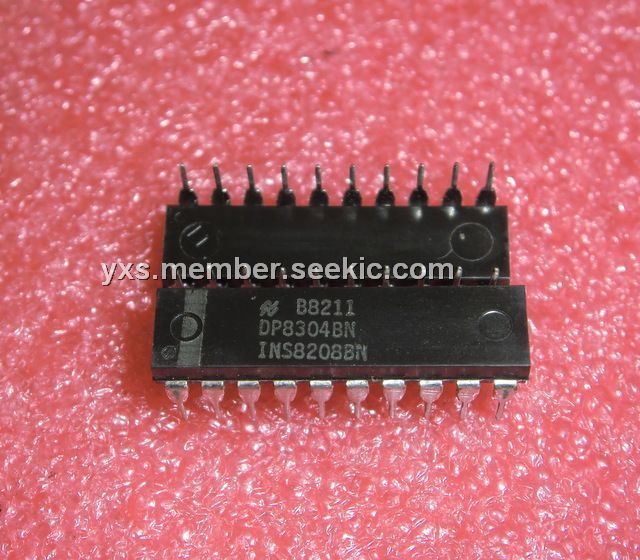

The DP8304BN is a high speed schottky 8-bit TRI-STATE bidirectional transceiver designed to provide bidirectional drive for bus oriented microprocessor and digital communicatiosn systems. The device is all capable of sinking 16mA on the A ports and 48mA on the B ports. The DP8304BN is featured with transmit/receive and chip disable inputs to simplify control logic.
Parametrics
DP8304BN absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltage: 5.5V; (4)storage temperature: -65 to 150℃; (5)maximum power dissipation: 1667mW; (6)lead temperature: 260℃.
Features
DP8304BN features: (1)8 bit bidirectional data flow reduces system package count; (2)bidirectional TRI-STATE inputs/outputs interface with bus oriented systems; (3)PNP inputs reduce input loading; (4)output high votlage interfaces with TTL, MOS, and CMOS; (5)48mA/300pF bus drive capability; (6)pinouts simplify system interconnections; (7)transmit/receive and chip disable simplify control logic; (8)compact 20-pin dual in line package; (9)bus port glitch free power up/down.
