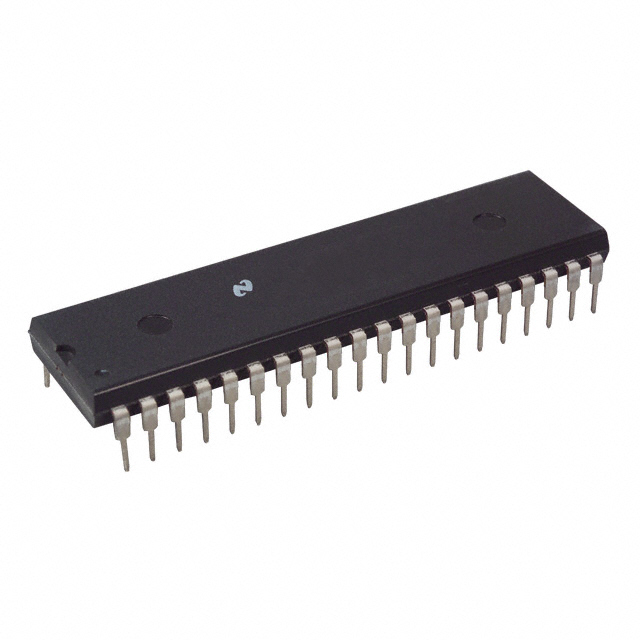

COP8SAC740N9, ROM Based and One-Time Programmable Microcontroller, 40-DIP, 7V, 80mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: COP8SAC740N9

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:COP8SAC740N9
US $5.00 - 60.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

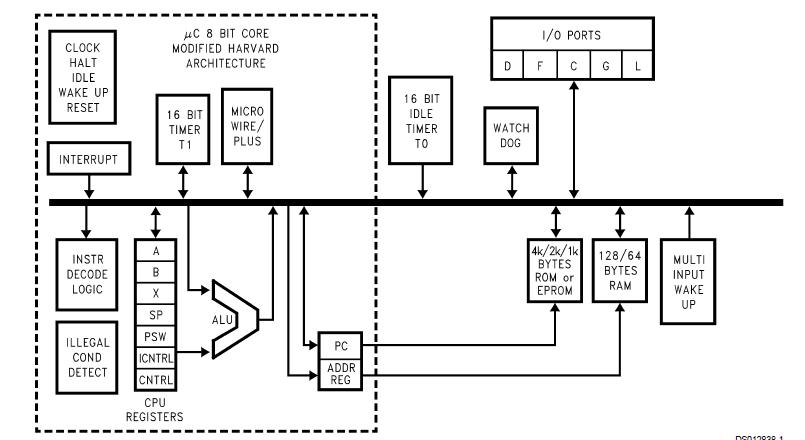

The COP8SAC740N9 is an 8-Bit CMOS ROM Based and One-Time Programmable (OTP) Microcontroller with Power On Reset, and Very Small Packaging. The COP8SAC740N9 is highly integrated COP8 features core device, with 1k to 4k memory and advanced features including low EMI. The COP8SAC740N9 is suited for low cost applications requiring a full featured controller, low EMI, and POR. 100% form-fit-function compatible OTP versions are available with 1k, 2k, and 4k memory, and in a variety of packages including 28-pin CSP. Erasable windowed versions are available for use with a range of COP8 software and hardware development tools.

Parametrics

COP8SAC740N9 absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Voltage at Any Pin: -0.6V to VCC +0.6V; (3)ESD Protection Level: 2 kV (Human Body Model); (4)Total Current into VCC Pin (Source): 80 mA; (5)Total Current out of GND Pin (Sink): 100 mA; (6)Storage Temperature Range: -65℃ to +140℃.

Features

COP8SAC740N9 features: (1)Low cost 8-bit OTP microcontroller; (2)OTP program space with read/write protection (fully secured); (3)Quiet Design (low radiated emissions); (4)Multi-Input Wakeup pins with optional interrupts (4 to 8 pins); (5)8 bytes of user storage space in EPROM; (6)User selectable clock options, Crystal/Resonator options; Crystal/Resonator option with on-chip bias resistor; External oscillator; Internal R/C oscillator; (7)Internal Power-On Reset—user selectable; (8)WATCHDOG and Clock Monitor Logic—user selectable; (9)Up to 12 high current outputs.
