COP8SAA716M8/NOPB

COP8SAA716M8/NOPB, ROM Based and One-Time Programmable Microcontroller, 40-DIP, 7V, 80mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: COP8SAA716M8/NOPB

Brand:: National Semiconductor - NS | Pack: SMD | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:COP8SAA716M8/NOPB
US $5.00 - 60.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

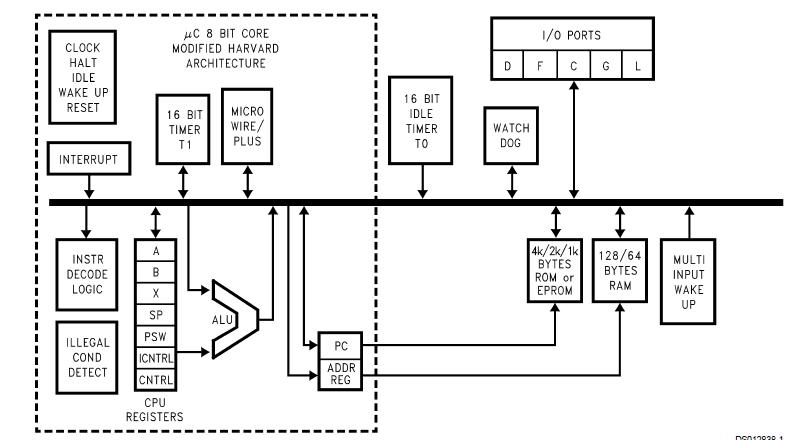

The COP8SAA716M8/NOPB is an 8-Bit CMOS ROM Based and One-Time Programmable (OTP) Microcontroller with Power On Reset, and Very Small Packaging. The COP8SAA716M8/NOPB is highly integrated COP8 features core device, with 1k to 4k memory and advanced features including low EMI. The COP8SAA716M8/NOPB is suited for low cost applications requiring a full featured controller, low EMI, and POR. 100% form-fit-function compatible OTP versions are available with 1k, 2k, and 4k memory, and in a variety of packages including 28-pin CSP. Erasable windowed versions are available for use with a range of COP8 software and hardware development tools.

Parametrics

COP8SAA716M8/NOPB absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Voltage at Any Pin: -0.6V to VCC +0.6V; (3)ESD Protection Level: 2 kV (Human Body Model); (4)Total Current into VCC Pin (Source): 80 mA; (5)Total Current out of GND Pin (Sink): 100 mA; (6)Storage Temperature Range: -65℃ to +140℃.

Features

COP8SAA716M8/NOPB features: (1)Low cost 8-bit OTP microcontroller; (2)OTP program space with read/write protection (fully secured); (3)Quiet Design (low radiated emissions); (4)Multi-Input Wakeup pins with optional interrupts (4 to 8 pins); (5)8 bytes of user storage space in EPROM; (6)User selectable clock options, Crystal/Resonator options; Crystal/Resonator option with on-chip bias resistor; External oscillator; Internal R/C oscillator; (7)Internal Power-On Reset—user selectable; (8)WATCHDOG and Clock Monitor Logic—user selectable; (9)Up to 12 high current outputs.
