Product Summary

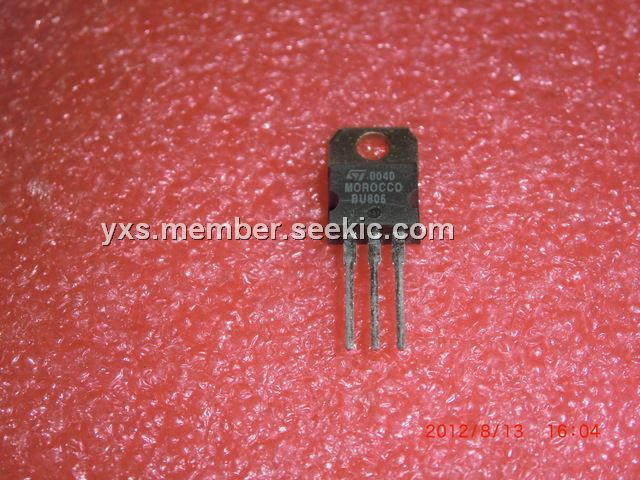

The BU806 is a silicon Epitaxial Planar NPN power transistor in Darlington configuration with integrated base-emitter speed-up diode, mounted in TO-220 plastic package. The BU806 can be used in horizontal output stages of 110℃ RT video displays. The applications are horizontal deflection for monochrome TVs.
Parametrics
BU806 absolute maximum ratings: (1)VCBO, Collector-base Voltage (IE = 0): 400V; (2)VCEV, Collector-emitter Voltage (VBE = -6V): 400V; (3)VCEO, Collector-emitter Voltage (IB = 0): 200V; (4)VEBO, Emitter-Base Voltage (IC = 0): 6 V; (5)IC, Collector Current: 8 A; (6)ICM, Collector Peak Current: 15 A; (7)IDM, Damper Diode Peak Forward Current: 10 A; (8)IB, Base Current: 2 A; (9)Ptot, Total Power Dissipation at Tcase < 25℃: 60 W; (10)Tstg, Storage Temperature: -65 to 150℃; (11)Tj, Max Operating Junction Temperature: 150℃.
Features
BU806 features: (1)STMicroelectronics preferred salestypes; (2)NPN darlingtons; (3)low base-drive requirements; (4)integrated antiparallel collector-emitter diode.

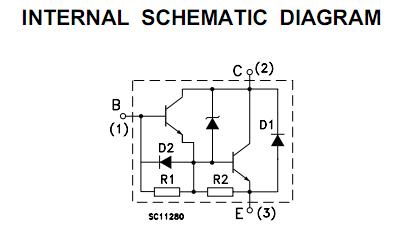

Diagrams
