AT27C1024-15JC

read-only memory, 40DIP, low-power, high-performance, -2.0V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: AT27C1024-15JC

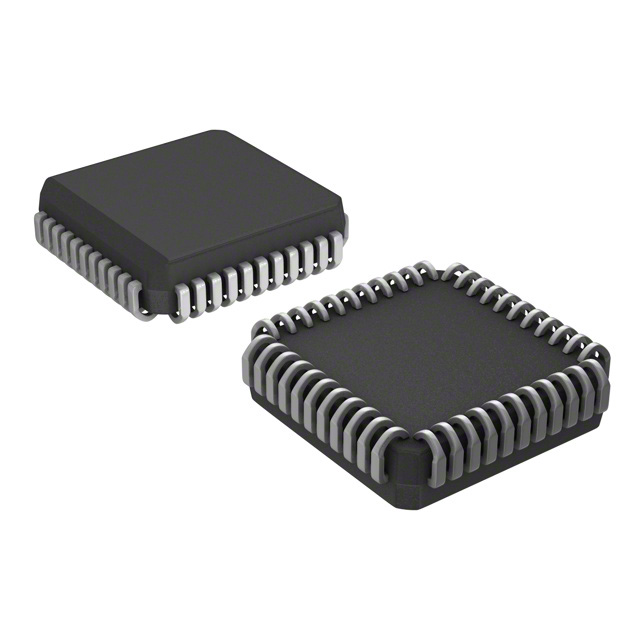

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AT27C1024-15JC
US $5.00 - 60.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

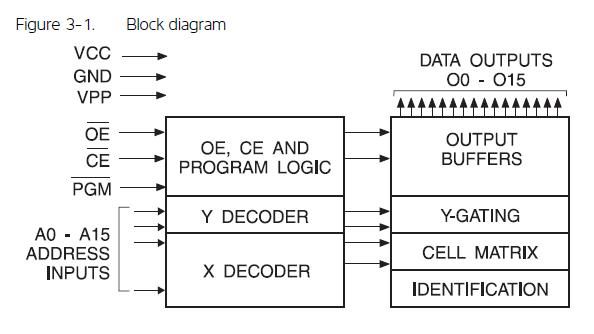

The Atmel AT27C1024-15JC is a low-power, high-performance 1,048,576-bit, one-time programmable, read-only memory (OTP EPROM) organized as 64K by 16 bits. The AT27C1024-15JC requires only one 5V power supply in normal read mode operation. Any word can be accessed in less than 45ns, eliminating the need for speed reducing WAIT states. The x16 organization of the AT27C1024-15JC makes this part ideal for high-performance, 16- and 32-bit microprocessor systems.

Parametrics

AT27C1024-15JC absolute maximum ratings: (1)Temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: -2.0V to +7.0V; (4)Voltage on A9 with respect to ground: -2.0V to +14.0V; (5)VPP supply voltage with respect to ground: -2.0V to +14.0V.

Features

AT27C1024-15JC features: (1)Fast read access time: 45ns; (2)Low-power CMOS operation: 100μA max standby, 30mA max active at 5MHz; (3)JEDEC standard packages: 40-lead PDIP, 44-lead PLCC; (4)5V±10% supply; (5)High-reliability CMOS technology: 2000V ESD protection, 200mA latchup immunity; (6)Rapid programming algorithm: 100μs/byte (typical); (7)CMOS- and TTL-compatible inputs and outputs; (8)Integrated product identification code; (9)Industrial temperature range; (10)Green (Pb/halide-free) packaging option.
