Product Summary

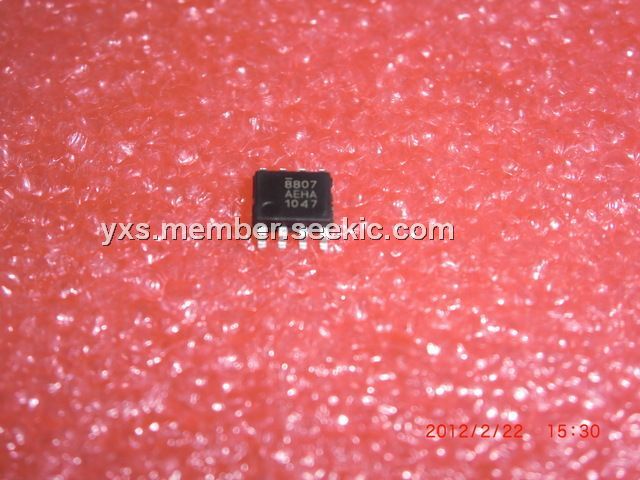

The AME8807AEHAZ is a positive, linear regulator. It features low ground current (30mA Typ.) with low dropout voltage, making the AME8807AEHAZ ideal for battery applications. The space-saving SOP-8 & DFN-8 (3mmx3mmx0.6mm) packages are attractive for Pocket and Hand Held applications. The AME8807AEHAZ is stable with an output capacitance of 2.2mF or greater.
Parametrics
AME8807AEHAZ absolute maximum ratings: (1)Input Voltage: -0.3 to 8 V; (2)EN Voltage: -0.3 to 8 V; (3)Output Voltage: -0.3 to VIN + 0.3 V; (4)Output Current: PD / (VIN - VOUT) mA.
Features
AME8807AEHAZ features: (1)Very Low Dropout Voltage; (2)Guaranteed 600mA Output; (3)Typical 30mA Quiescent Current; (4)Over-Temperature Shutdown; (5)Current Limiting; (6)Short Circuit Current Fold-back; (7)Power-Saving Shutdown Mode; (8)Space-Saving SOP-8 & DFN-8 Packages; (9)User Adjustable Output Voltages; (10)Low Temperature Coefficient.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AME8807AEHAZ |
AME |
Low Dropout (LDO) Regulators Adj. 600mA CMOS |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
AME8800BEFTZ |
AME |
Low Dropout (LDO) Regulators 3.0V 300mA CMOS |
Data Sheet |
|
|
||||||||||||
 |
AME8804AEEYZ |
AME |
Low Dropout (LDO) Regulators Adj. 300mA CMOS |
Data Sheet |
|
|
||||||||||||
 |
AME8800SEETZ |
AME |
Low Dropout (LDO) Regulators 5.0V 300mA CMOS |
Data Sheet |
|
|
||||||||||||
|
AME8801AEEVZ |
AME |
Low Dropout (LDO) Regulators 3.3V 300mA CMOS |
Data Sheet |
|
|
||||||||||||
|
AME8801JEEVZ |
AME |
Low Dropout (LDO) Regulators 2.85V 300mA CMOS |
Data Sheet |
|
|
||||||||||||
|
AME8801SEEV |
AME |
Low Dropout (LDO) Regulators 5.0V 300mA CMOS |
Data Sheet |
|
|
||||||||||||
