Product Summary

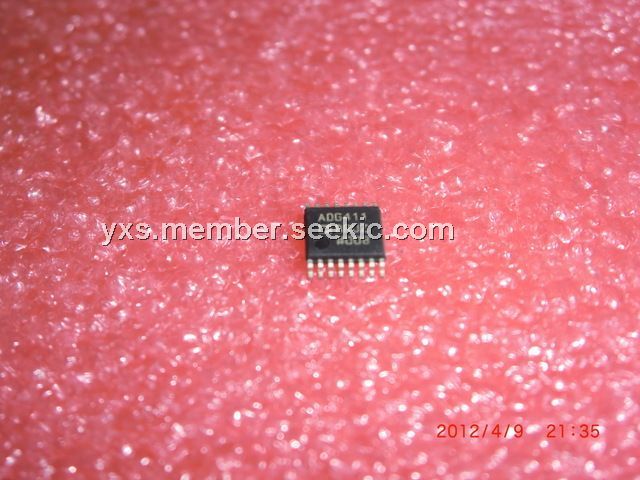

The ADG411BRUZ is a monolithic CMOS device comprising four independently selectable switches. The ADG411BRUZ is designed on an enhanced LC2MOS process which provides low power dissipation yet gives high switching speed and low on resistance. The applications of the ADG411BRUZ are (1)Audio and Video Switching; (2)Automatic Test Equipment; (3)Precision Data Acquisition; (4)Battery Powered Systems; (5)Sample Hold Systems; (6)Communication Systems.
Parametrics
ADG411BRUZ absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: –0.3 V to +25 V; (3)VSS to GND: +0.3 V to –25 V; (4)VL to GND: –0.3 V to VDD + 0.3 V; (5)Analog, Digital Inputs: VSS –2 V to VDD +2 V or 30 mA, Whichever Occurs First: 30 mA; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Junction Temperature: +150℃; (9)Cerdip Package, Power Dissipation: 900 mW; (10)θJA Thermal Impedance: 76℃/W; (11)Lead Temperature, Soldering (10 sec): +300℃.
Features
ADG411BRUZ features: (1)44 V Supply Maximum Ratings; (2)615 V Analog Signal Range; (3)Low On Resistance (<35 V); (4)Ultralow Power Dissipation (35 mW); (5)Fast Switching Times: tON <175 ns; tOFF <145 ns; (6)TTL/CMOS Compatible; (7)Plug-In Replacement for DG411/DG412/DG413.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADG411BRUZ |
|
IC SWITCH QUAD SPST 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADG411BRUZ-REEL |
|
IC SWITCH QUAD SPST 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADG411BRUZ-REEL7 |
|
IC SWITCH QUAD SPST 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
