Product Summary

The AD7578KN is a medium speed, monolithic 12-bit CMOS A/D converter which uses the successive approximation technique to provide a conversion time of 100us. An auto-zero cycle occusrs at the start of each conversion resulting in very low system offset votlages, typically less than 100uV. The AD7578KN is designed for easy microprocessor interfacing using standard control signals, CS, RD, and WR.

Parametrics

AD7578KN absolute maximum ratings: (1)VDD to DGND: -0.3V, 17V; (2)VSS to DGND: 0.3V, -7V; (3)AGND to DGND: -0.3V, VREF+0.3V; (4)VCC to DGND: -0.3V, VDD+0.3V; (5)VREF to AGND: -0.3V, VDD+0.3V; (6)digital input voltage to DGND: -0.3V, VDD+0.3V; (7)operating temperature range: -40 to 85℃; (8)storage temeprature: -65 to 150℃; (9)junction temperature: 150℃.

Features

AD7578KN features: (1)12 bit successive approximation ADC; (2)no missed codes over full temeprature range; (3)low total unadjusted error ±1LSB max; (4)high impedance analog input autozero cycle for low offset voltage; (5)low power 75nW typ; (6)small size: 0.3", 24 pin package; (7)conversion time of 100μs.

Diagrams

AD7578KN functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

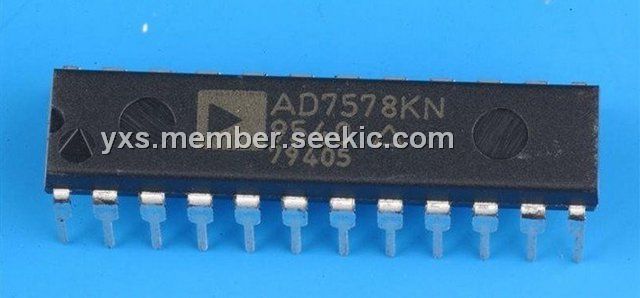

AD7578KN
