Product Summary

The 9435A is a P-Channel Enhancement Mode Field Effect Transistor.

Parametrics

9435A absolute maximum ratings: (1)Drain-Source Voltage, VDS: -30V; (2)Gate-Source Voltage, VGS: ±20V; (3)Drain Current-Continuous, ID: -5.3A; (4)Drain Current-Pulsed , IDM: -20A; (5)Maximum Power Dissipation, PD: 2.5W; (6)Operating and Store Temperature Range TJ,Tstg: -55 to 150℃.

Features

9435A features: (1)-30V, -5.3A, RDS(ON)= 50mW@VGS = -10V; RDS(ON)= 90mW@VGS = -4.5V; (2)Super high dense cell design for extremely low RDS(ON); (3)High power and current handing capability; (4)Surface mount Package; (5)Lead free product is acquired.

Diagrams

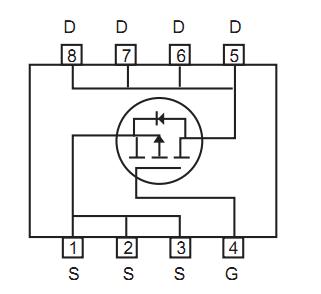

9435A block diagram

9435
9435
Keystone Electronics
Screws & Fasteners 3/8 6-32 NYLON BND
Data Sheet
0-1: $0.07
1-100: $0.04
100-500: $0.03
500-1000: $0.02
94350
94350
SPI Westek
Anti-Static Control Products REORD 809-94392
Data Sheet
Negotiable
94352-5007
94352-5007
Molex
Memory Card Connectors MMC CONNECTOR 7 CKT
Data Sheet
Negotiable
9435730001
9435730001
TE Connectivity / Raychem
Wire Identification
Data Sheet
Negotiable
9435CDB
9435CDB
Apem

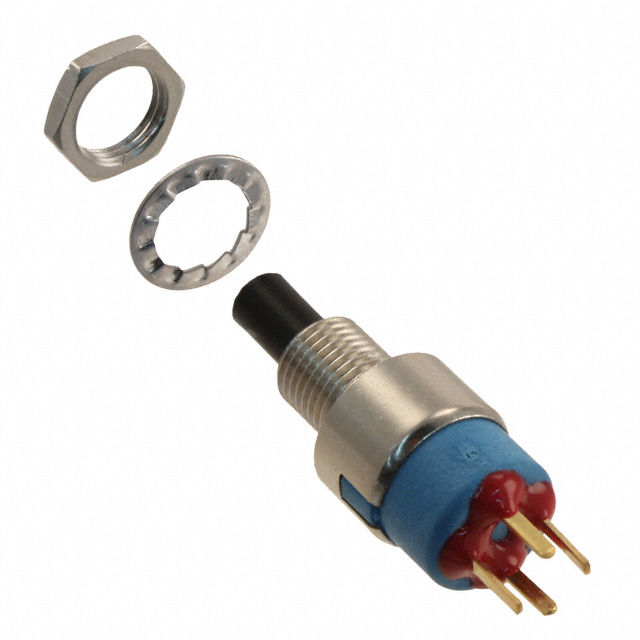

Pushbutton Switches SPDT ON-MOM 0.1A 30VDC
