Product Summary

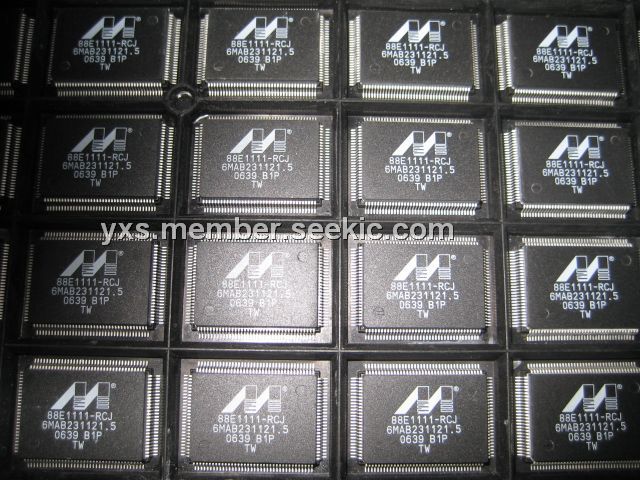

The 88E1111-RCJ is a Gigabit Ethernet Transceiver. It is a physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications. The 88E1111-RCJ is manufactured using standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on standard CAT 5 unshielded twisted pair.
Parametrics
88E1111-RCJ absolute maximum ratings: (1)Package 117TFBGA; (2)Standard Supported IEEE 802.3|IEEE 802 .3u|IEEE 1149.1; (3)Data Rate 1000 Mbps; (4)Number of Transceivers 1; (5)Operating Supply Voltage 1|1.2|2.5 V.
Features
88E1111-RCJ features: (1)Energy Detect and Energy Detect+ low power modes; (2)Three loopback modes for diagnostics; (3)Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers; (4)Advanced digital baseline wander correction; (5)Automatic MDI/MDIX crossover at all speeds of operation; (6)Automatic polarity correction.

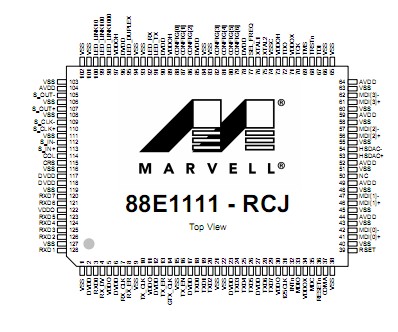

Diagrams
 |
