Product Summary

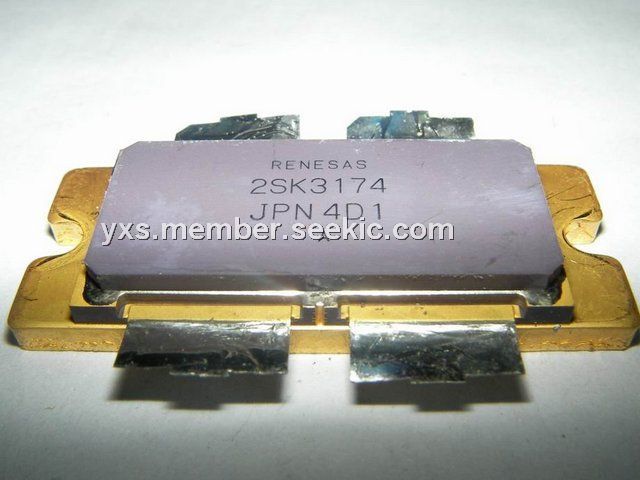

The 2SK3174 is a Silicon N Channel MOS FET.
Parametrics
2SK3174 absolute maximum ratings: (1)Drain to source voltage VDSS: 60 V; (2)Gate to source voltage VGSS: ±10 V; (3)Drain current ID: 16 A; (4)Drain peak current ID(pulse): 32 A; (5)Channel dissipation Pch: 252 W; (6)Channel temperature Tch: 175℃; (7)Storage temperature Tstg: –55 to +150℃.
Features
2SK3174 features: (1)High power output, High gain, High efficiency P1dB = 220 W , PG = 15.3dB , ηD = 61 % (at P1dB) typ. (f = 860MHz); (2)Compact package; (3)Suitable for push - pull circuit.

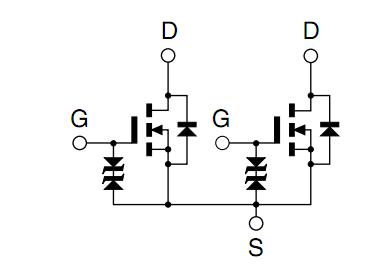

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK3174A_1377728 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
