Product Summary

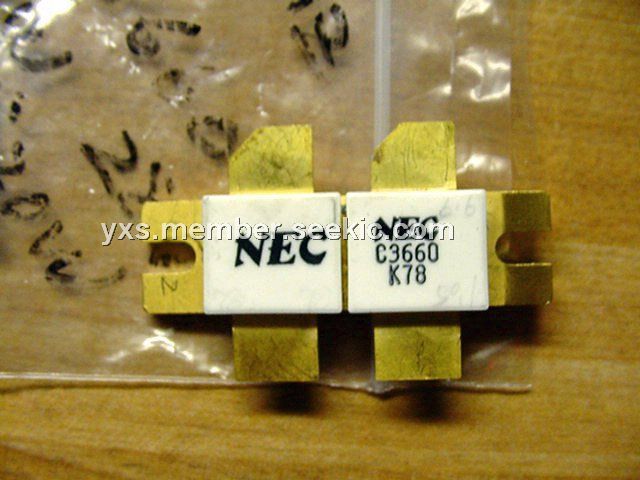

The 2SC3660A is a Power Transistor.
Parametrics
2SC3660A absolute maximum ratings: (1)VCBO: 30V; (2)VCEO: 25V; (3)VEBO: 10V; (4)ICV: 0.7A; (5)PT: 750mW.
Features
2SC3660A fetures: (1)8 analog signal input pins. Internal 8-bit high precision A/D converter (absolute accuracy: 0.4 % ±1/2 LSB); (2)Serial interface can accommodate asynchronous, synchronous, and I/O interface (capable of 9600 bps in asynchronous mode); (3)Enhanced timer/counters for control applications; (4)Internal zero-cross detection function for time or phase control. Enhanced interrupt function for effective utilization of abundant internal functions.

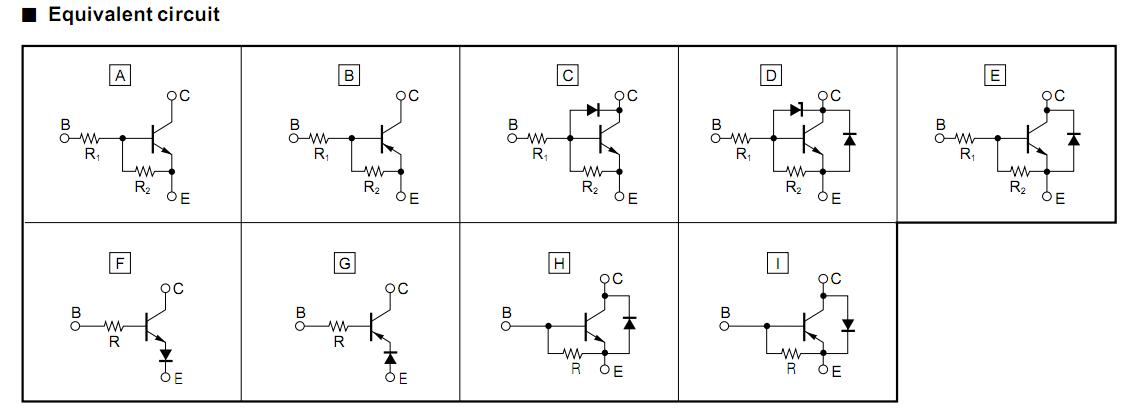

Diagrams
 |
