Product Summary
The 2SA1244 is a silicon PNP epitaxial type TOSHIBA transistor.
Parametrics
2SA1244 absolute maximum ratings: (1)collector-base voltage VCBO: -60 V; (2)collector-emitter voltage VCEO: -50 V; (3)emitter-base voltage VEBO: -5 V; (4)collector current IC: -5 A; (5)base current IB: -1 A; (6)collector power dissipation PC: 1.0 W; (7)junction temperature Tj: 150 ℃; (8)storage temperature range Tstg: -55 to 150 ℃.
Features
2SA1244 features: (1)low collextor saturation voltage: VCE(sat)=-0.4 V max at IC=-3 A; (2)high speed switching time: tstg=1.0 μs typ; (3)complementary to 2SC3074.

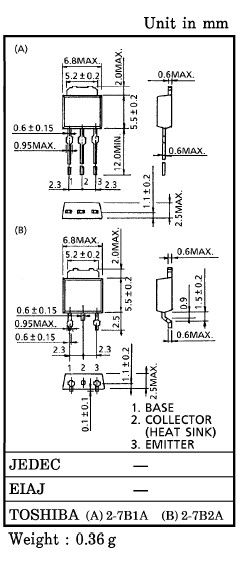

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1244 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
2SA1244-O(Q) |
|
TRANSISTOR PNP 50V 5A PW-MOLD |
Data Sheet |
Negotiable |
|
||||
|
2SA1244-Y(Q) |
Toshiba |
Transistors Bipolar (BJT) PNP 50V 5A Transistor |
Data Sheet |
Negotiable |
|
||||
