Product Summary

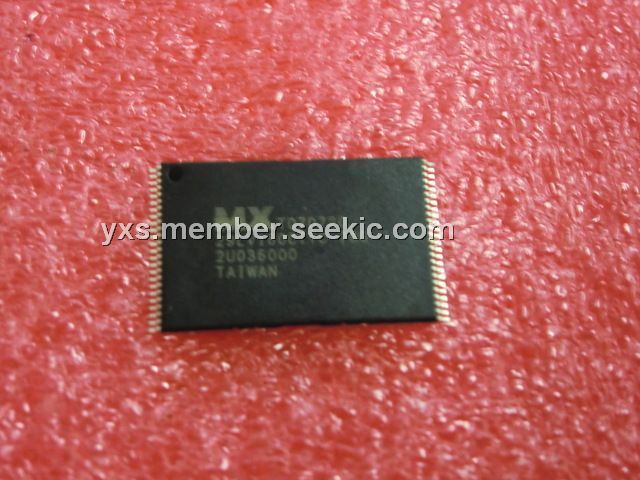

The 29LV160CTTC-70G is a 16-mega bit Flash memory organized as 2M bytes of 8 bits or 1M words of 16 bits. The Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The 29LV160CTTC-70G is packaged in 44-pin SOP, 48-pin TSOP and 48-ball CSP. The 29LV160CTTC-70G is designed to be reprogrammed and erased in system or in standard EPROM programmers.
Parametrics
29LV160CTTC-70G Maximum ratings: (1)Plastic Packages: -65℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1): -0.5 V to +4.0 V; (4)A9, OE#, and RESET# (Note 2): -0.5 V to +12.5 V; (5)All other pins (Note 1): -0.5 V to VCC +0.5 V; (6)Output Short Circuit Current (Note 3): 200 mA.
Features
29LV160CTTC-70G features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)2,097,152 x 8/1,048,576 x 16 switchable; (3)Single power supply operation; (4)- 3.0V only operation for read, erase and program operation; (5)Fully compatible with MX29LV160B device; (6)Fast access time: 55R/70/90ns; (7)Low power consumption.
Diagrams
 |
